MSI B250M BAZOOKA PLUS

27
Overview of Components

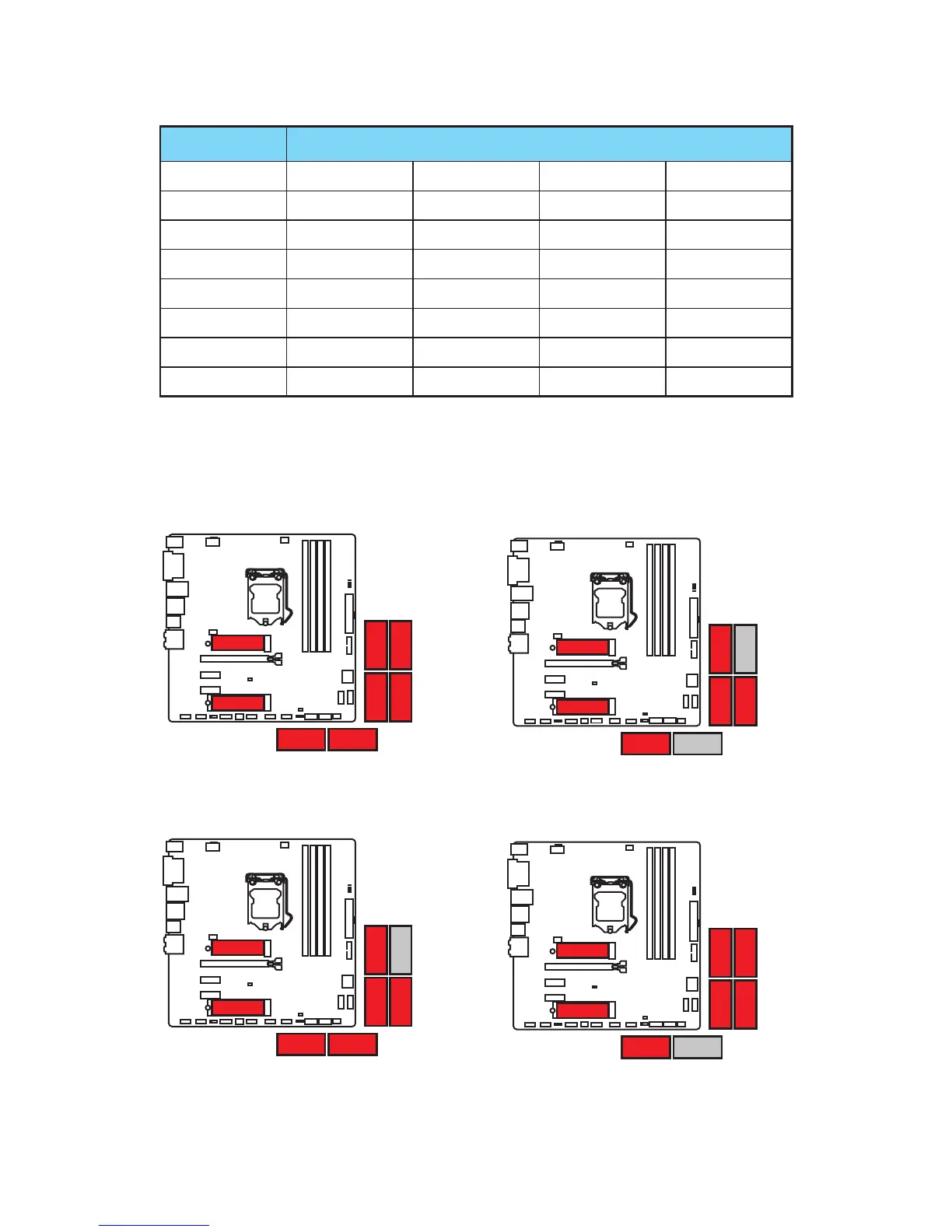

M.2 , SATA & PCIe combination table
Slot Available SATA connectors & PCIe slots
M2_1 PCIe SATA PCIe SATA
M2_2 PCIe PCIe SATA SATA
SATA1 ✓ ─ ✓ ─
SATA2 ✓ ✓ ✓ ✓
SATA3 ✓ ✓ ✓ ✓
SATA4 ✓ ✓ ✓ ✓
SATA5 ✓ ✓ ─ ─
SATA6 ✓ ✓ ✓ ✓
(SATA: M.2 SATA SSD, PCIe: M.2 PCIe SSD, ✓: available, ─: unavailable)
M.2 slots with examples of various combination possibilities
PCIe
SATA
PCIe
SATA
PCIe
PCIe
SATA
SATA
SATA4SATA4
SATA4 SATA4
SATA6
SATA6
SATA6
SATA6
SATA2SATA2
SATA2 SATA2
SATA1
SATA1
SATA3SATA3
SATA3 SATA3
SATA5
SATA5
2xM.2 PCIe SSDs + 6xSATA HDDs
1xM.2 PCIe SSD + 6xSATA HDDs
2xM.2 SATA SSDs + 4xSATA HDDs
1xM.2 SATA SSD + 1xM.2 PCIe SSD +
5xSATA HDDs
