14

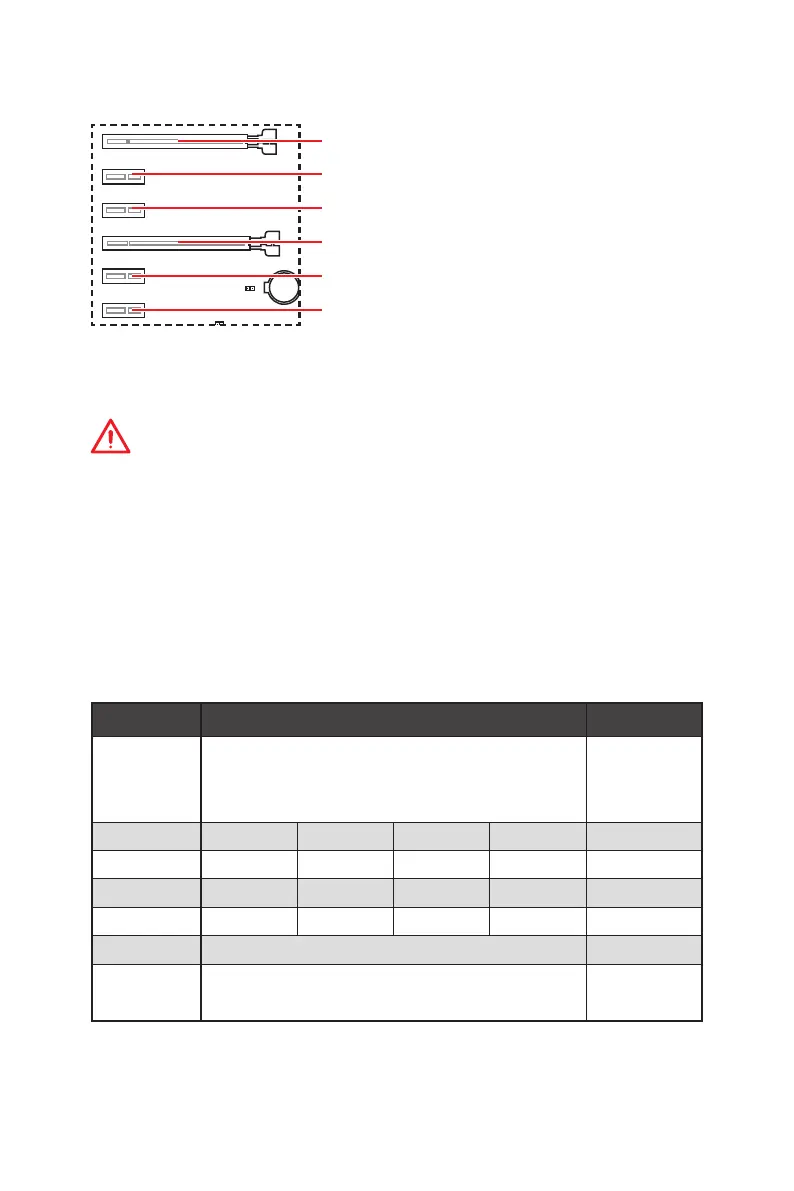

BAT1
: PCIe 3.0 x16*/ x8**/ x4***
: PCIe 2.0 x1
: PCIe 2.0 x1
: PCIe 2.0 x4
: PCIe 2.0 x1
: PCIe 2.0 x1
Important
y
If you install a large and heavy graphics card, you need to use a tool such as MSI
to support its weight to prevent deformation of
the slot.
y
For a single PCIe x16 expansion card installation with optimum performance, using
the slot is recommended.
y
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
y
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
* For 1st, 2nd and 3rd Gen AMD Ryzen™ processors
** For Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™
Graphics processors
*** For Athlon™ with Radeon™ Vega Graphics processor
Slot Single 2-Way
PCI_E1 (CPU)
@ 3.0 x16*
or @ 3.0 x8**
or @ 3.0 x4***
@ 3.0 x16*
or @ 3.0 x8**
or @ 3.0 x4***
PCI_E2 (PCH) 2.0 x1 2.0 x1 Empty Empty —
PCI_E3 (PCH) 2.0 x1 Empty 2.0 x1 Empty —
PCI_E4 (PCH) 2.0 x1 2.0 x1 2.0 x1 2.0 x1 @2.0 x4
PCI_E5 (PCH) 2.0 x1 Empty Empty 2.0 x1 —
PCI_E6 (PCH) 2.0 x1 2.0x1
M2_1 (CPU)
3.0 x4*/**
or 3.0 x2***
3.0 x4*/**
or 3.0 x2***
processors,
**: for Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™
Graphics processors, ***: for Athlon™ with Radeon™ Vega Graphics processor)
