21
1
2 26
25
1 2 3 PRND0
4 5 PRND1 6
7 PRND2 8 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin

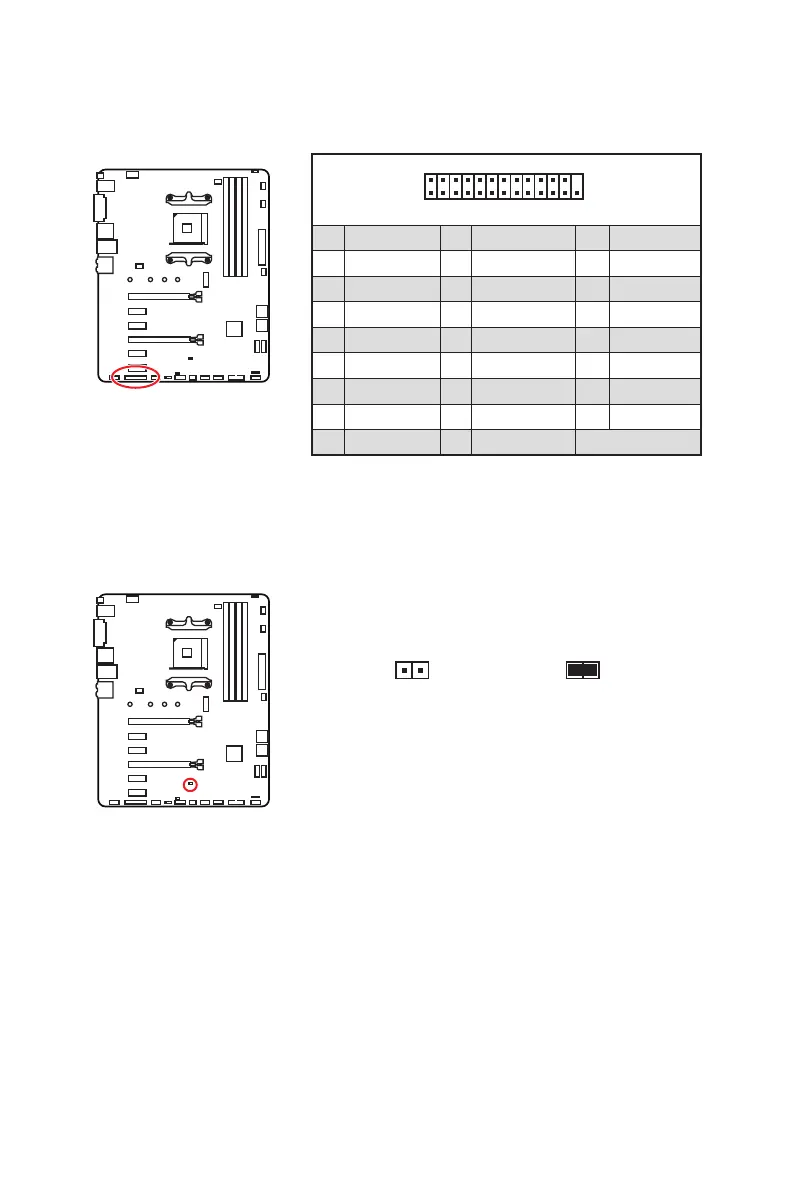

This connector allows you to connect the optional parallel port with bracket.
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumper to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
1. Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.
