MSI B450 GAMING PLUS MAX - RGB LED Connectors; EZ Debug LEDs

22



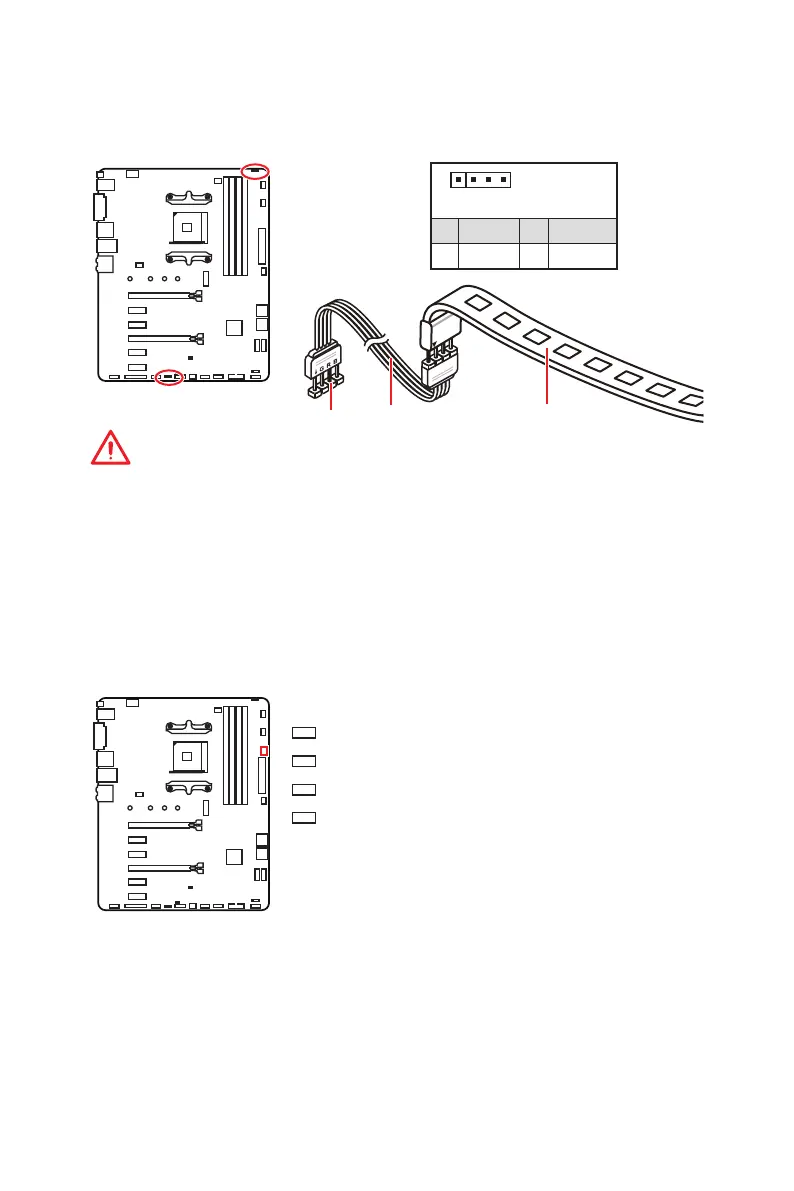

The JRGB1/2 connectors allow you to connect the 5050 RGB LED strips 12V.
Important
y The JRGB1/ JRGB2 connector supports up to 2 meters continuous 5050 RGB LED
strips (12V/G/R/B) with the maximum power rating of 3A (12V).
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MSI’s software to control the extended LED strip.
1
JRGB1/2
JRGB2
Extension cable
5050 RGB LED strips 12V
1
JRGB1/2
1 +12V 2 G
3 R 4 B
JRGB1
EZ Debug LEDs
These LEDs indicate the status of key components during booting process. When an
error is occurred, the corresponding LED stays lit until the problem is solved.

DRAM
VGA

or fail.
