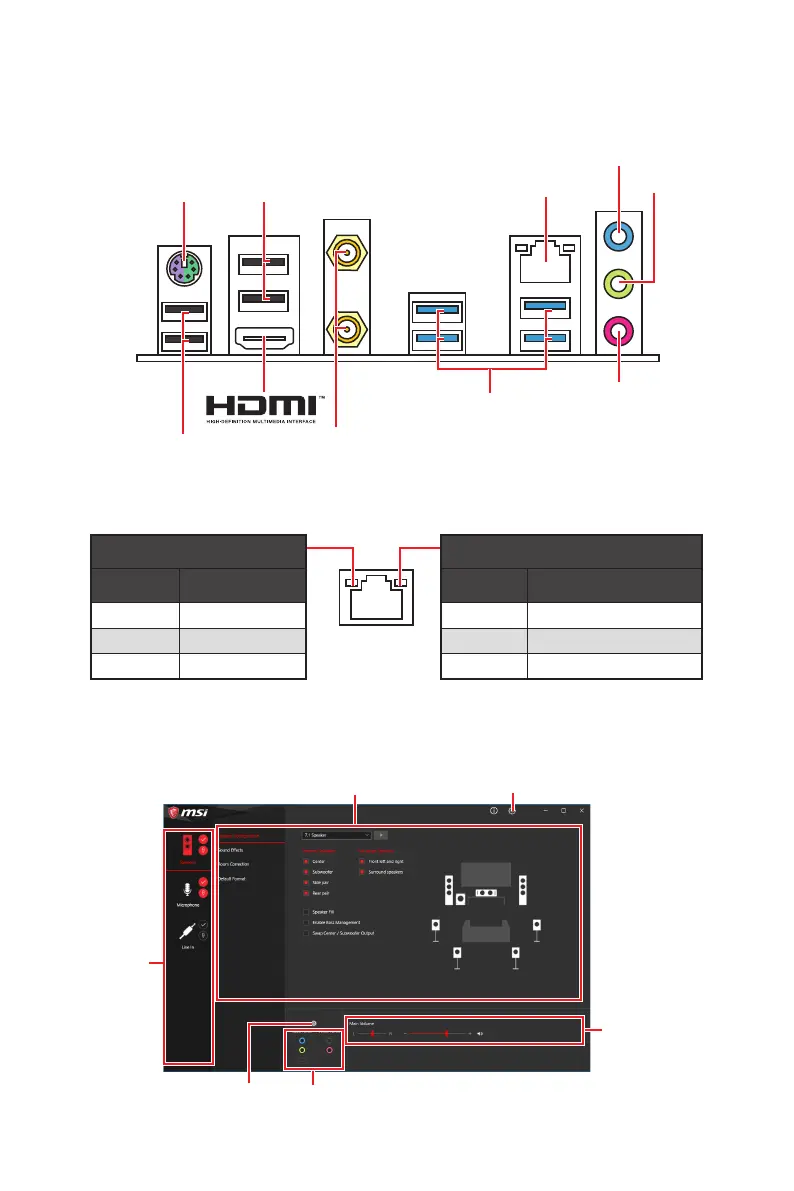

Rear I/O Panel
Rear I/O Panel
PS/2
Wi-Fi Antenna connectors
Gigabit LAN
USB 2.0
USB 2.0
USB 3.2 Gen1
Line-in
Mic in
Line-out
Realtek Audio Console
After Realtek Audio Console is installed. You can use it to change sound settings to get
better sound experience.
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Jack Status
Connector Settings
Device
Selection
Main Volume
Application Enhancement Advanced Settings
