BIOS Setup

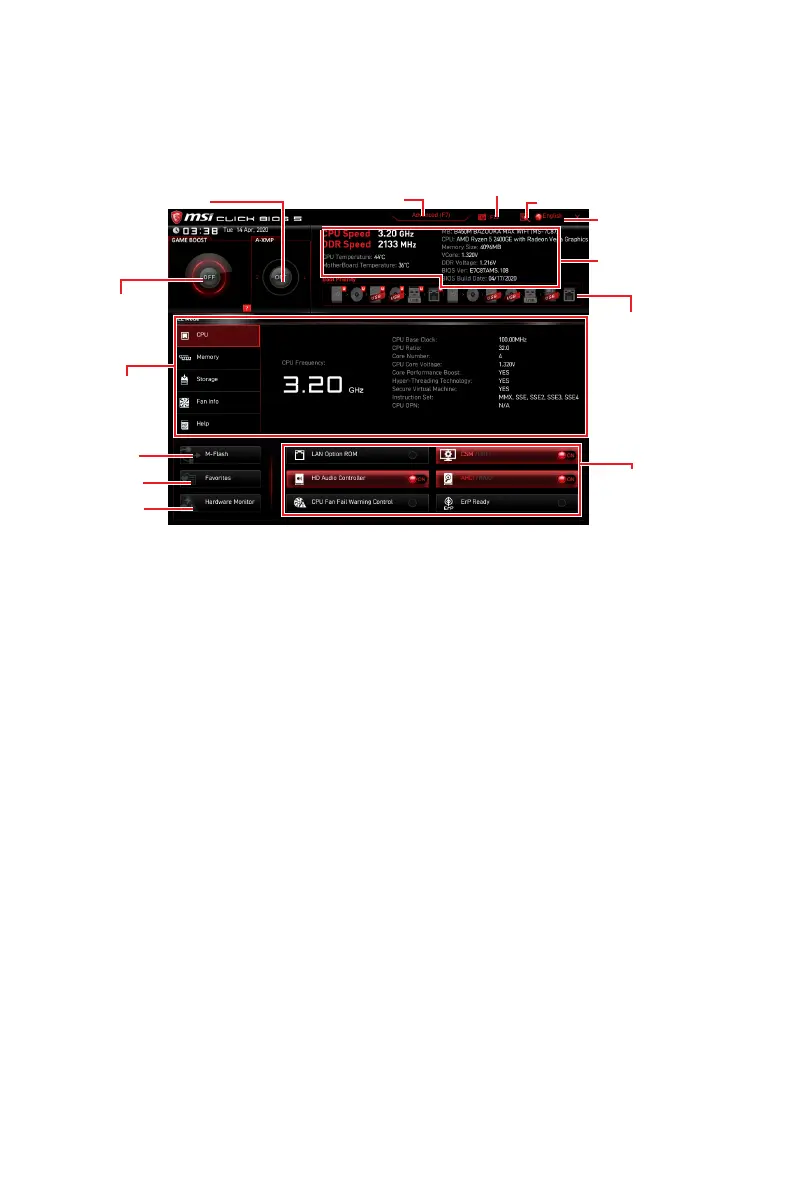

EZ Mode
At EZ mode, it provides the basic system information and allows you to configure the
basic setting. To configure the advanced BIOS settings, please enter the Advanced
Mode by pressing the Setup Mode switch or F7 function key.
A-XMP switch
Information
display
System
information
Boot device
priority bar
Function
buttons
Language
GAME BOOST
switch
Search
Screenshot
Setup Mode switch
M-Flash
Hardware
Monitor
Favorites
∙ GAME BOOST switch - click on it to toggle the GAME BOOST for OC.
⚠
Important
Please don’t make any changes in OC menu and don’t load defaults to keep the
optimal performance and system stability after activating the GAME BOOST function.
∙ A-XMP switch (optional) - click on the inner circle to enable/ disable the A-XMP.
Switch the outer circle to select the memory profile if any. This switch will only be
available if the installed processor and memory modules support XMP function.
∙ Setup Mode switch - press this tab or the F7 key to switch between Advanced mode
and EZ mode.
∙ Screenshot - click on this tab or the F12 key to take a screenshot and save it to USB
flash drive (FAT/ FAT32 format only).
∙ Search - click on this tab or the Ctrl+F keys and the search page will show. It allows
you to search by BIOS item name, enter the item name to find the item listing. Move
the mouse over a blank space and right click the mouse to exit search page.
⚠
Important
In search page, only the F6, F10 and F12 function keys are available.
∙ Language - allows you to select the language of BIOS setup.
∙ System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU
type, memory size, CPU/ DDR voltage, BIOS version and build date.
∙ Boot device priority bar - you can move the device icons to change the boot priority.
The boot priority from high to low is left to right.

MSI B450M BAZOOKA MAX WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Supported processor sockets	Socket AM4
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3733, 3866, 4100, 4133 MHz
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	3840 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3168
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	AMD B450
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10 x64, Windows 7 x64
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.0
Cables included	SATA

Weight and Dimensions

Width	244 mm
