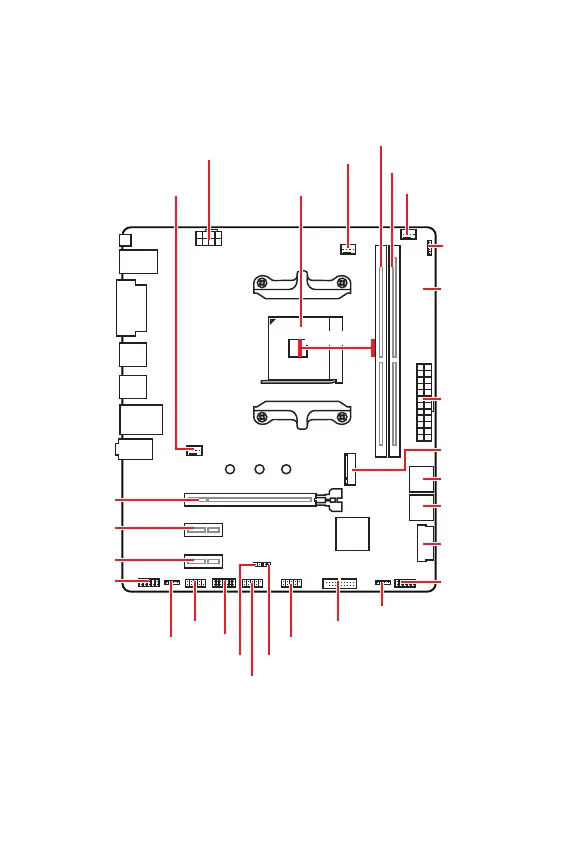

Overview of Components
CPU_FAN1
CPU SocketSYS_FAN1 SYS_FAN2
PCI_E3
JAUD1
JTPM1
PCI_E2
PCI_E1
DIMMA1
DIMMB1
JBAT1JCI1
JFP2
ATX_PWR1
CPU_PWR1
EZ Debug LED
M2_1
JUSB1
JUSB3
JUSB4
JUSB2
JRGB2
JRGB1
JFP1
JCOM1
Overview of Components
* Distance from the center of the CPU to the nearest DIMM slot.
52.00mm*
SATA12
SATA34
