MSI B650M PROJECT ZERO User Manual

36







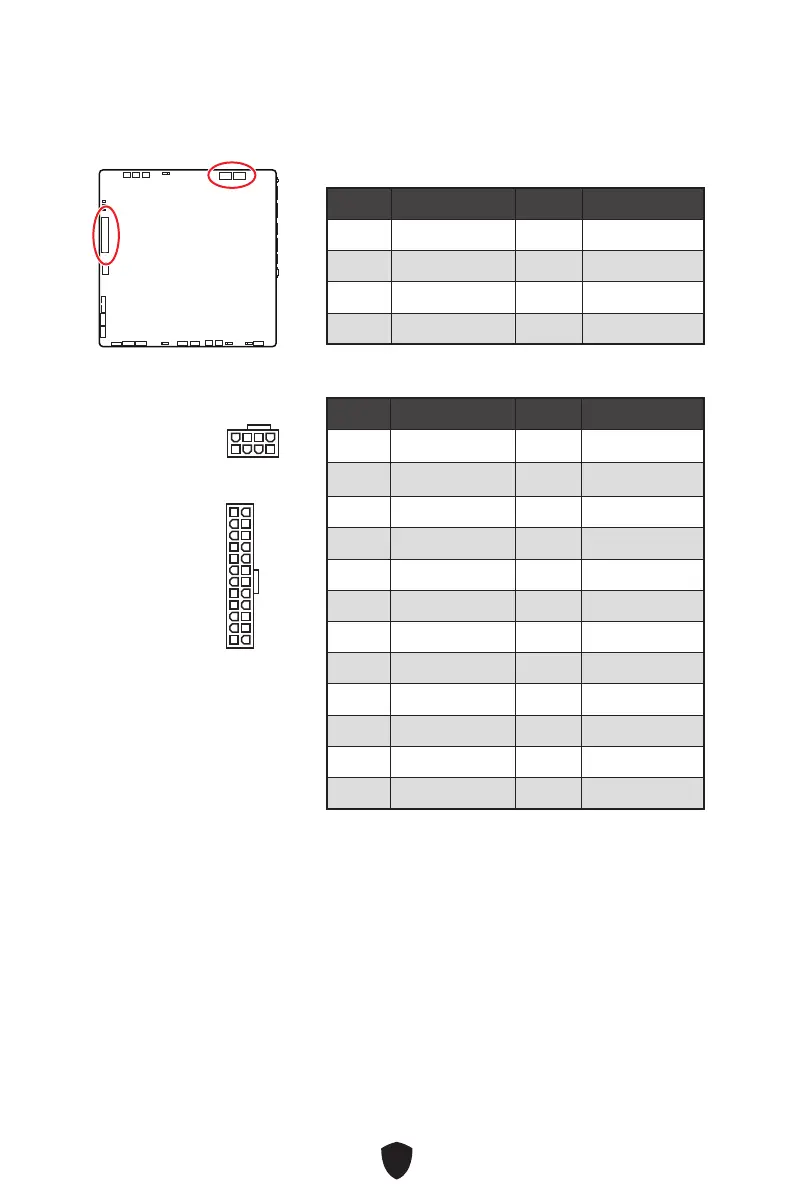

CPU_PWR1~2
   
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
ATX_PWR1
   
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1~2
24
131
12
ATX_PWR1

MSI B650M PROJECT ZERO Specifications

General

Chipset	AMD B650
Memory Support	DDR5
Maximum Memory Supported	192GB
Form Factor	Micro ATX
Socket	AM5
Memory Slots	4
Storage Interface	4 x SATA 6Gb/s
Network	2.5G LAN
Audio	Realtek ALC897
