MSI B650M PROJECT ZERO User Manual

22

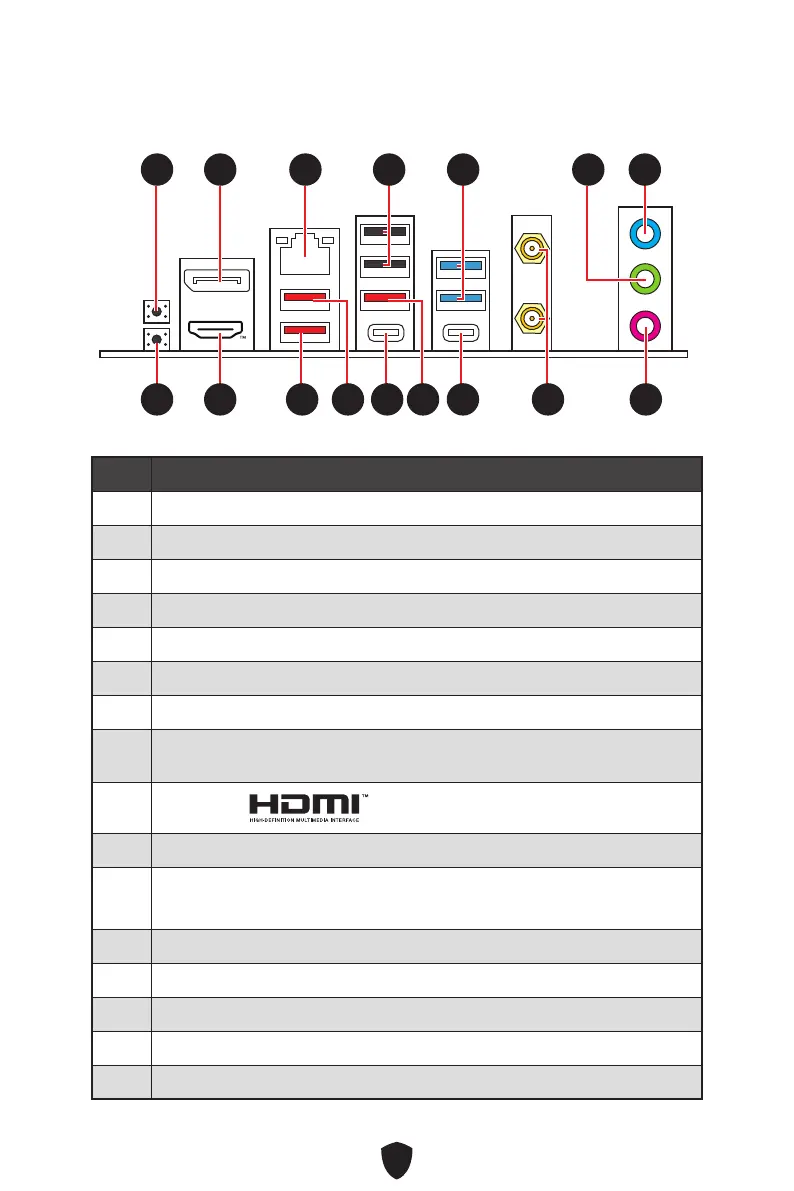

Back Panel Connectors
77
88 161699
2211 33
1212
44 55
14141111 13131010 1515
Item Description
1 Clear CMOS button
2 DisplayPort (DP1.4)
3 2.5 Gbps LAN port
4 USB 2.0 Type-A port (From B650 chipset)
5 USB 3.2 Gen 1 5Gbps Type-A port (From ASM1074)
6 Line-out jack
7 Line-In jack
8
Flash BIOS button - Please refer to page 52 for Updating BIOS with Flash
BIOS Button.
9
HDMI™ port
10 USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
11
USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
 Flash BIOS port
12 USB 3.2 Gen 2 10Gbps Type-C port (From CPU)
13 USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)
14 USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
15 Wi-Fi antenna connectors
16 Microphone jack
66

MSI B650M PROJECT ZERO Specifications

General

Chipset	AMD B650
Memory Support	DDR5
Maximum Memory Supported	192GB
Form Factor	Micro ATX
Socket	AM5
Memory Slots	4
Storage Interface	4 x SATA 6Gb/s
Network	2.5G LAN
Audio	Realtek ALC897
