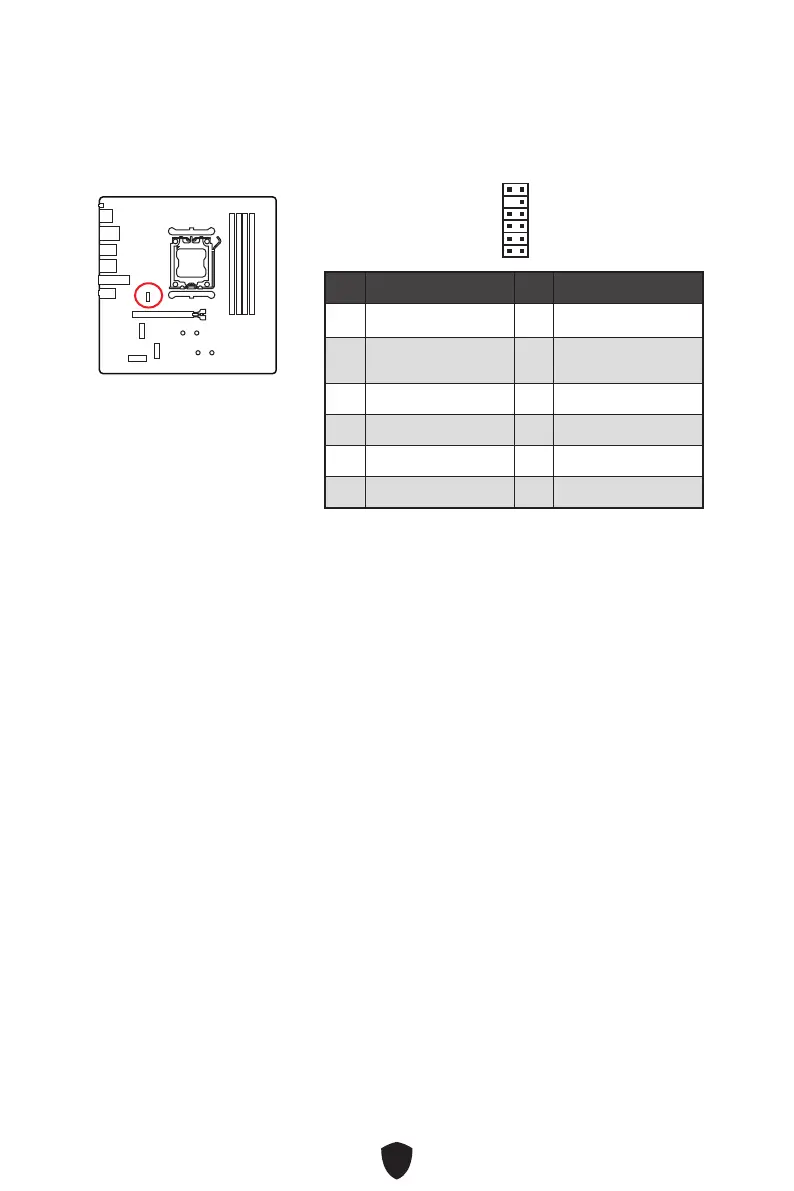

JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
Pin Signal Name Pin Signal Name
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2
12
11

Important
The JTPM connector is located under the WMOS-Heatsink. Before installing the TPM
module, remove the heatsink.

MSI B650M PROJECT ZERO Specifications

General

Chipset	AMD B650
Memory Support	DDR5
Maximum Memory Supported	192GB
Form Factor	Micro ATX
Socket	AM5
Memory Slots	4
Storage Interface	4 x SATA 6Gb/s
Network	2.5G LAN
Audio	Realtek ALC897
