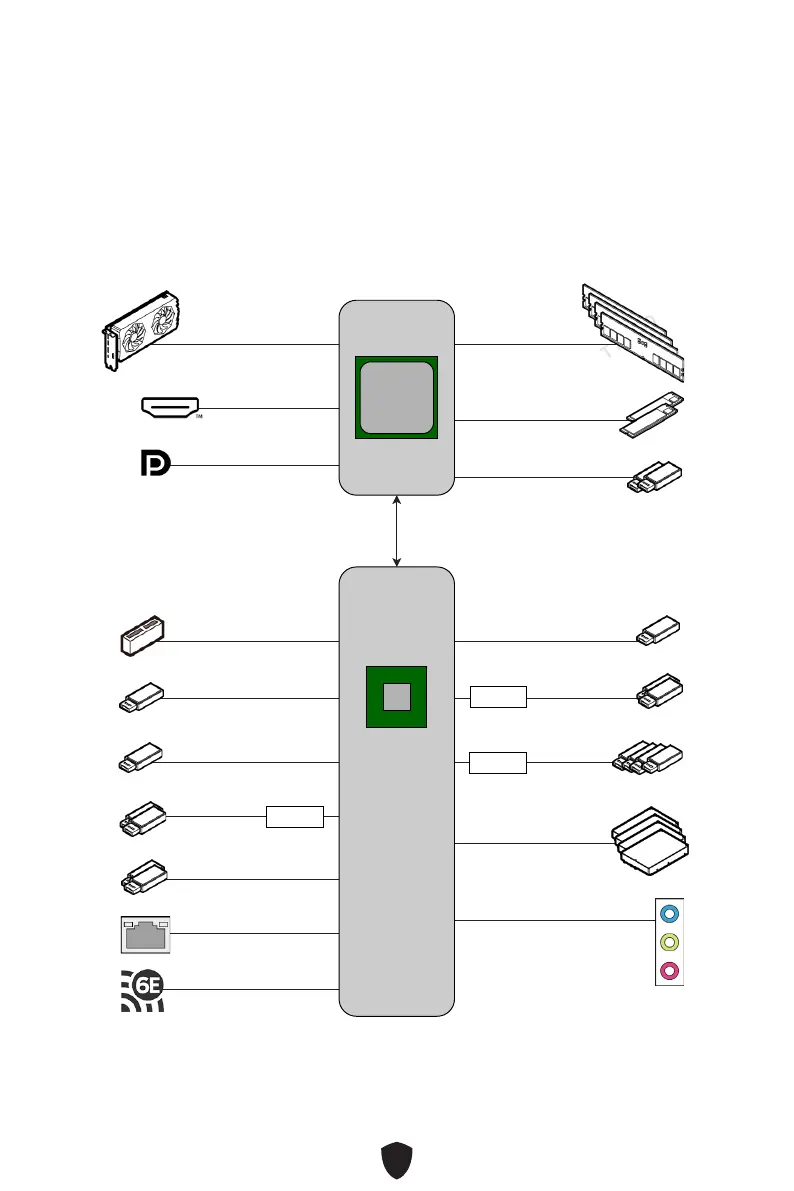

Block Diagram
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
MSI
B650M PROJECT ZERO
B650M PROJECT ZERO
PCIe 4.0x16 PCI_E1
DDR5
DIMM A1/A2
DIMM B1/B2
GEN4 x4 M.2_1 / M2_2
(PCIe Only)
USB3.2 Gen2 10Gbps
(Type-A)
USB3.2 Gen2x2 20Gbps
(Type-C)
USB2.0
(Front Type-A)
SATA_1_2_3_4
Realtek 8125BG
2.5Gbps LAN
USB3.2 Gen2 5Gbps
(Front Type-A)
CPU
PCIE x4
PCIe x1 PCI_E2
CHIPSET_A
ASM1074
USB3.2 Gen2 5Gbps
(Type-A)
USB3.2 Gen2 10Gbps
(Front Type-C)
USB2.0
(Type-A)
GL850
USB3.2 Gen2 10Gbps
(Type-C)
HDMI 2.1
(4K@60Hz)
DP 1.4
(4K@60Hz)
WIFI6E
REALTEK
ALC897
ASM1074

MSI B650M PROJECT ZERO Specifications

General

Chipset	AMD B650
Memory Support	DDR5
Maximum Memory Supported	192GB
Form Factor	Micro ATX
Socket	AM5
Memory Slots	4
Storage Interface	4 x SATA 6Gb/s
Network	2.5G LAN
Audio	Realtek ALC897
