Important
Do not touch the CPU socket pns.
Con󰘰rm that the CPU cooler has formed a tght seal wth the CPU before bootng
your system.
Whenever the CPU s not nstalled, always protect the CPU socket pns by coverng
the socket wth the plastc cap.
Please refer to the documentaton n the CPU cooler package for more detals about
CPU cooler nstallaton.
•
•
•
•

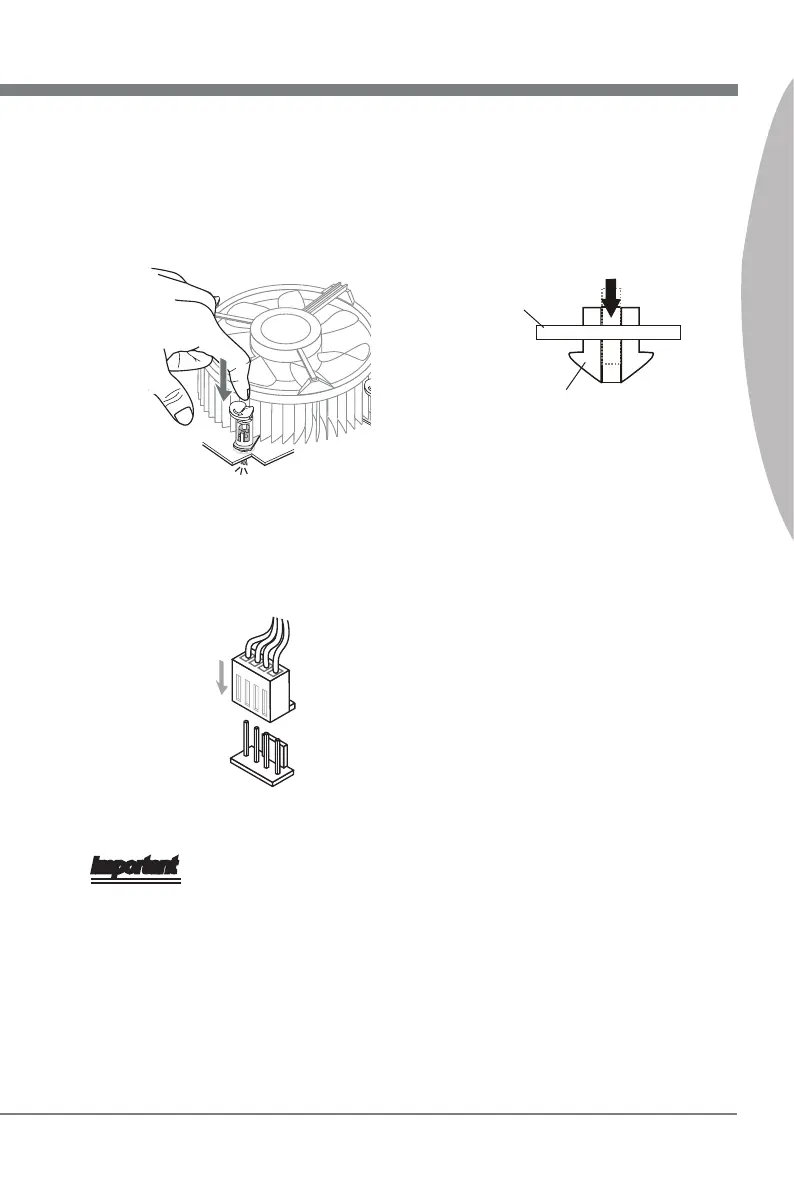

Push down on the heatsnk untl the
four clps get wedged nto the holes
on the manboard. Press the four
hooks down to fasten the cooler. As
each hook locks nto poston a clck
should be heard.
9. Inspect the manboard to ensure that
the clp-ends have been properly
locked n place.
10.
Fnally, attach the CPU fan cable
to the CPU fan connector on the
manboard.
11.
Manboard
Hook

MSI B75MA-P45 series Specifications

General

Form Factor	Micro ATX
Chipset	Intel B75
Socket	LGA 1155
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066 MHz
PCI Express x16	1
SATA 6Gb/s	1
SATA 3Gb/s	5
Audio	Realtek ALC887
RAID Support	No
USB 3.0	2 x USB 3.0
USB 2.0	8 x USB 2.0
LAN	Realtek 8111E
PCI Express x1	2
