MSI B75MA-P45 series User Manual

En-19
Englsh

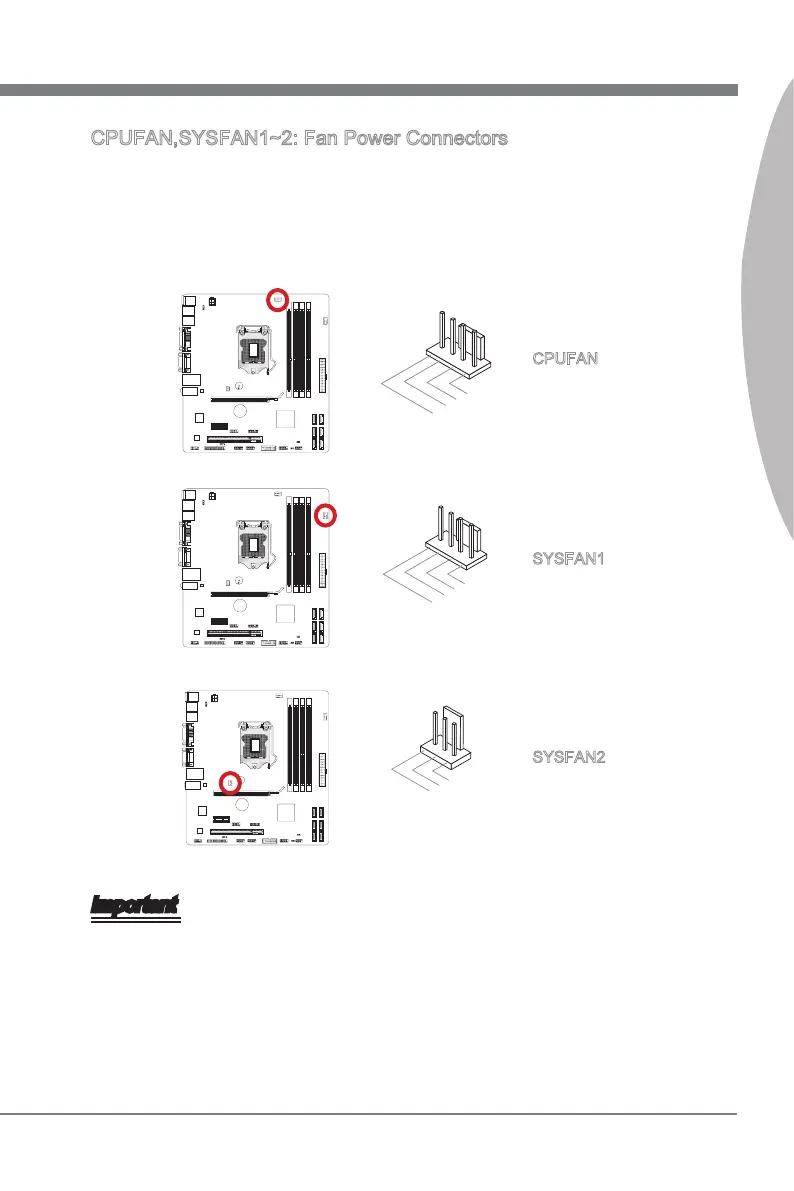

CPUFAN,SYSFAN1~2: Fan Power Connectors
The fan power connectors support system coolng fans wth +12V. If the manboard has
a System Hardware Montor chpset on-board, you must use a specally desgned fan
wth a speed sensor to take advantage of the CPU fan control. Remember to connect
all system fans. Some system fans may not connect to the manboard and wll nstead
connect to the power supply drectly. A system fan can be plugged nto any avalable
system fan connector.
SYSFAN2
1
.
G
r
o
u
n
d
2
.
+
1
2
V
3
.
S
e
n
s
o
r
4
.
C
o
n
t
r
o
l
CPUFAN
SYSFAN1
1.Ground
2.+12V
3.Sensor
4.No
Us
e
1
.Ground
2.+12V
3.No
Us
e
Important
Please refer to your processor’s o󰘲cal webste or consult your vendor to 󰘰nd recom-
mended CPU coolng fans.
The CPUFAN connector supports Smart Fan Control wth lnear mode. The Control
Center II utlty can be nstalled to automatcally control the fan speeds accordng to
the CPU’s temperature.
If there are not enough ports on the manboard to connect all system fans, adapters
are avalable to connect a fan drectly to a power supply.
Before 󰘰rst boot up, ensure that there are no cables mpedng any fan blades.
•
•
•
•

MSI B75MA-P45 series Specifications

General

Form Factor	Micro ATX
Chipset	Intel B75
Socket	LGA 1155
Max Memory	32GB
Memory Standard	DDR3 1600/1333/1066 MHz
PCI Express x16	1
SATA 6Gb/s	1
SATA 3Gb/s	5
Audio	Realtek ALC887
RAID Support	No
USB 3.0	2 x USB 3.0
USB 2.0	8 x USB 2.0
LAN	Realtek 8111E
PCI Express x1	2
