CPU & Heatsink Installation

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink

is necessary to prevent overheating and maintain system stability. Follow the steps

below to ensure correct CPU and heatsink installation. Wrong installation can damage

both the CPU and the motherboard.

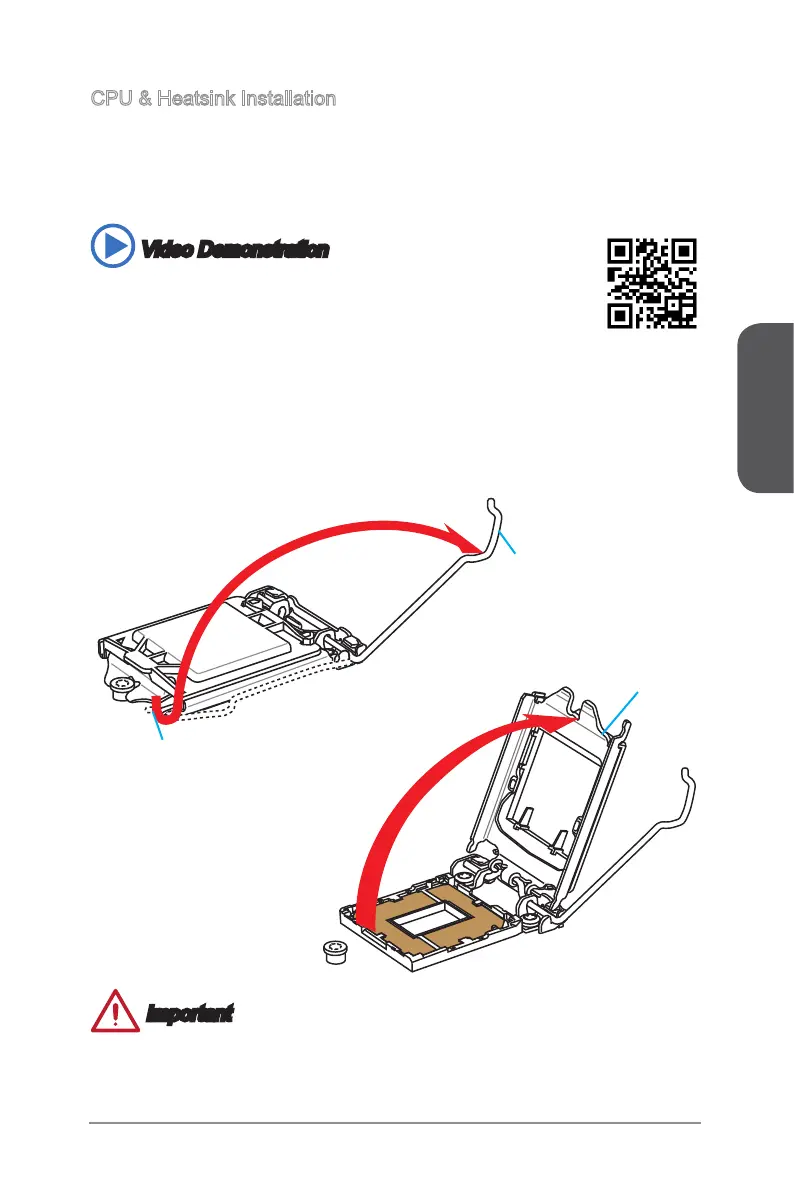

1. Push the load lever down to unclip it and lift to the fully open position.

2. The load plate will automatically lift up as the load lever is pushed to the fully open

position.

Retention tab

Load lever

Load plate

Important

Do not touch the socket contacts or the bottom of the CPU.

Video Demonstration

Watch the video to learn how to install CPU & heatsink. at the address

below.

http://youtu.be/bf5La099urI
