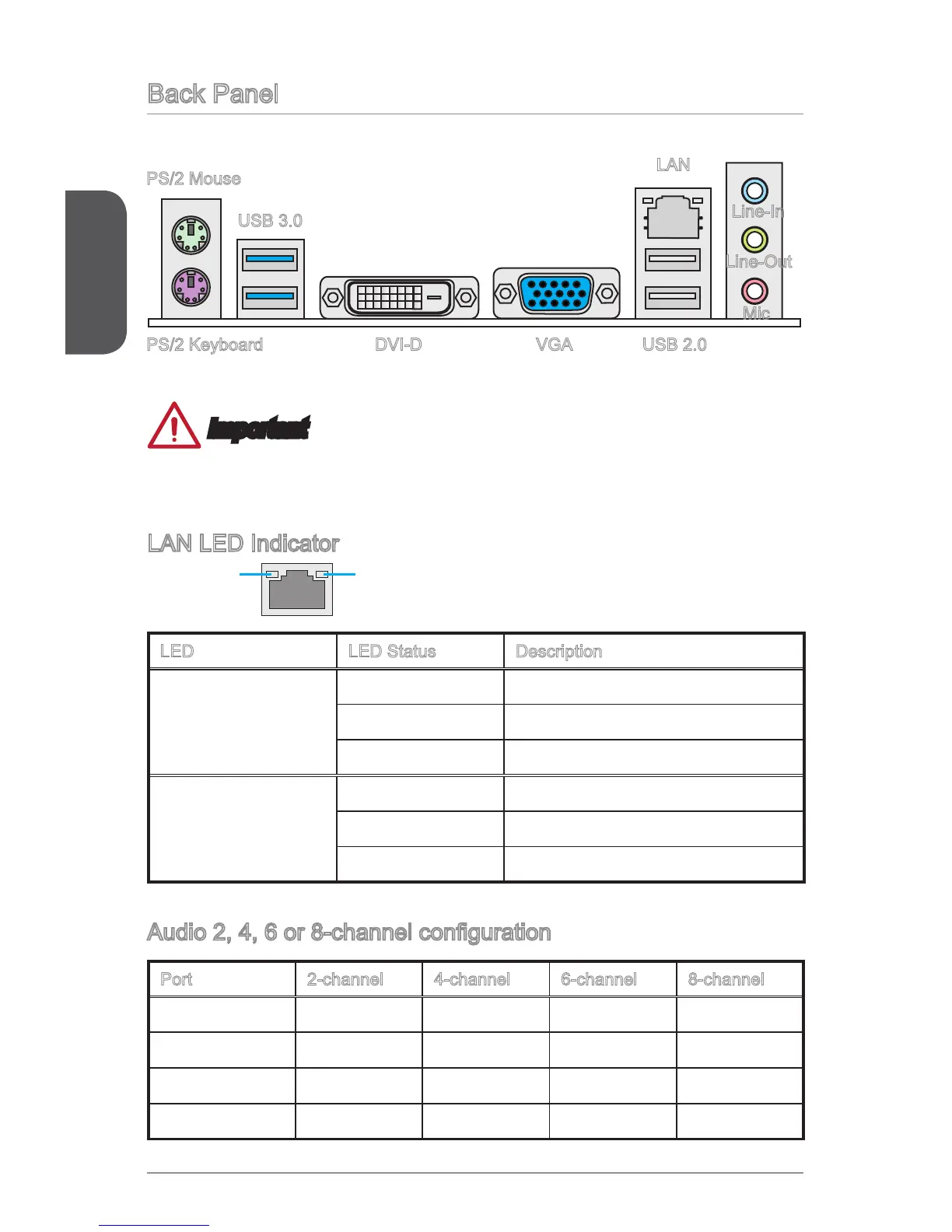

Back Panel
PS/2 Mouse
PS/2 Keyboard
USB 3.0
VGADVI-D
Line-In
Line-Out
Mic
USB 2.0
LAN
Important
Under default BIOS setting, the PS/2 and USB ports do not support S4 and S5
sleeping mode. Please press power button to wake up from S4 and S5.
LAN LED Indicator
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
󰘯 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
󰘰
Port 2-channel 4-channel 6-channel 8-channel
Blue Line in RS-Out RS-Out RS-Out
Green Line out FS-Out FS-Out FS-Out
Pink Mic Mic CS-Out CS-Out
Front audio - - - SS-Out
