Deutsch
80

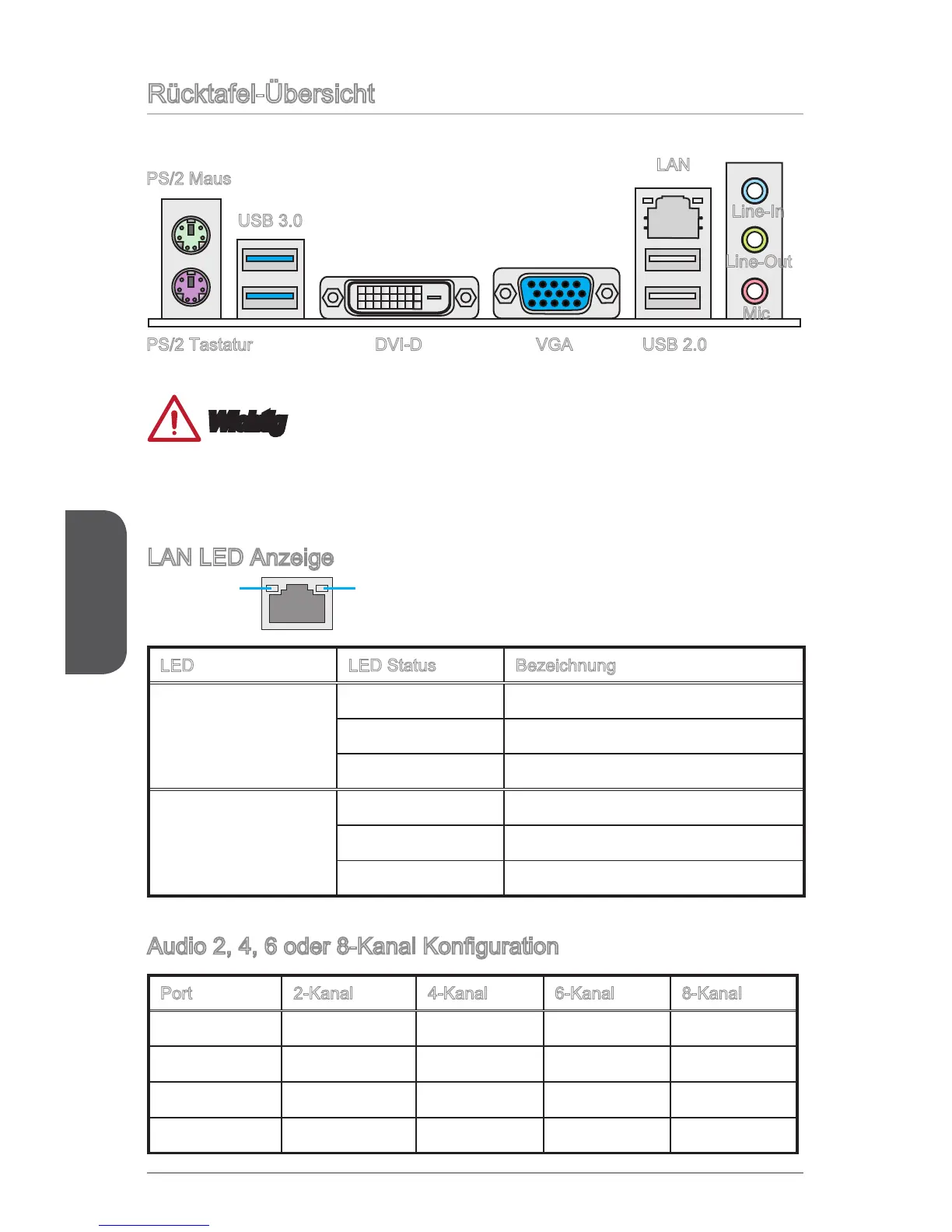

Rücktafel-Übersicht
PS/2 Maus
PS/2 Tastatur
USB 3.0
VGADVI-D
Line-In
Line-Out
Mic
USB 2.0
LAN
Wichtig
Unter Standard-BIOS-Einstellung, die PS/2 und USB-Anschlüsse den S4- und S5-
Schlafmodus nicht unterstützt. Bitte drücken Sie Power-Taste, um aus dem S4- und
S5-Modus aufwachen.
LAN LED Anzeige
LINK/ACT
LED
SPEED
LED
LED LED Status Bezeichnung
Link/ Activity LED
(Verbindung/ Aktivität
LED)
Aus Keine Verbindung
Gelb Verbindung
Blinkt Datenaktivität
Speed LED
(Geschwindigkeit
LED)
Aus 10 Mbps-Verbindung
Grün 100 Mbps-Verbindung
Orange 1 Gbps-Verbindung
󰘰
Port 2-Kanal 4-Kanal 6-Kanal 8-Kanal
Blau Line-Eingang RS-Ausgang RS-Ausgang RS-Ausgang
Grün Line-Ausgang FS-Ausgang FS-Ausgang FS-Ausgang
Rosa Mic Mic CS-Ausgang CS-Ausgang
Front-Audio - - - SS-Ausgang
