CX70/CR70 (MS-1755) Disassembly Guide

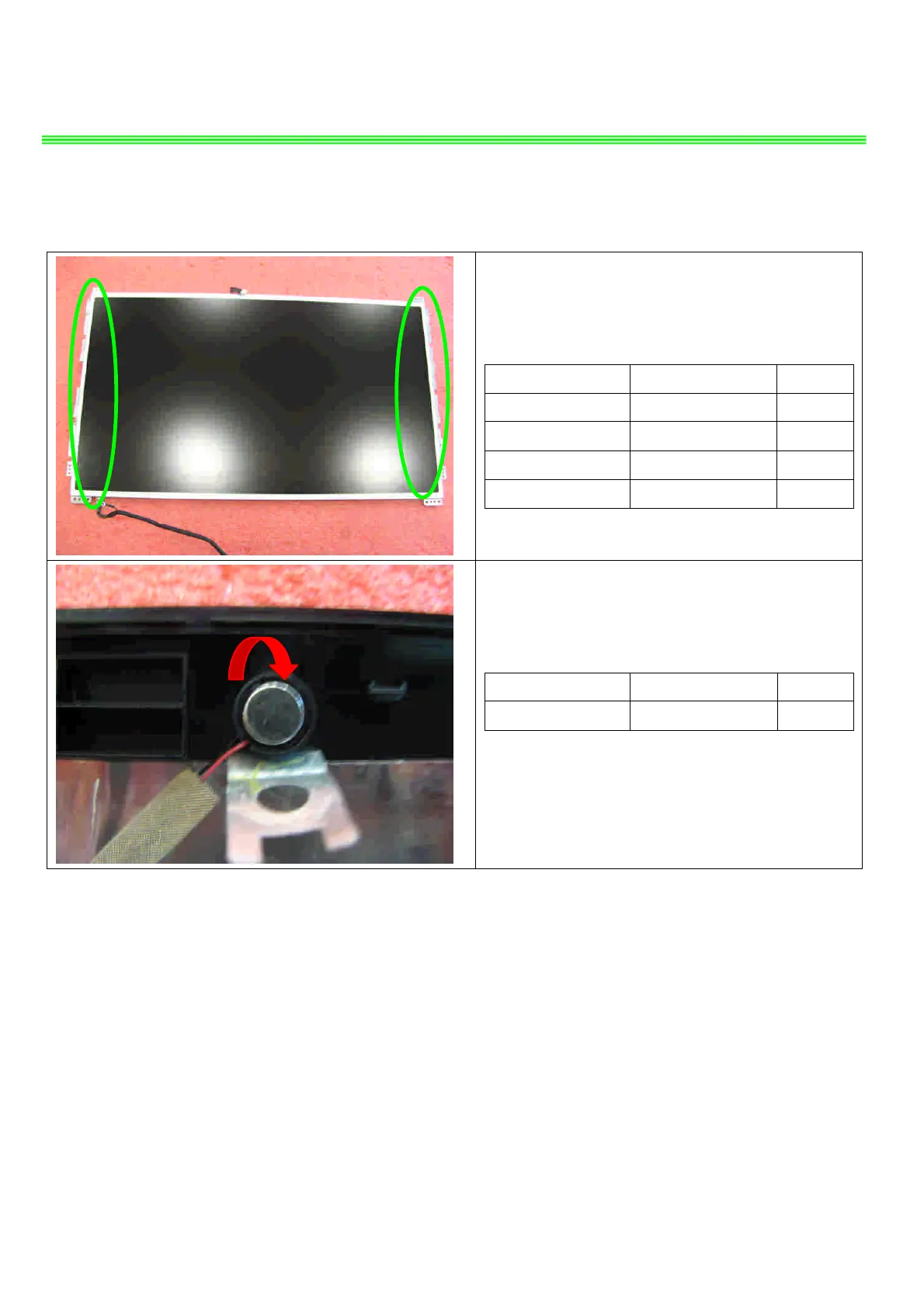

9、 LCD MODULE ASSY
9.9：Remove the 8 screws (M2*3mm)
Attention: the screw driver torque is 1.5-2.0Kgf-cm
Component P/N Qty
Display Module S1J-7E1A003-L47 1
LCD BRACKET-L E2M-7510611-C22 1
LCD BRACKET-R E2M-7510711-C22 1
Screw E43-1203013-G68 8
9.10：Remove the MIC Module as left picture show
Component P/N Qty
MIC Module S34-2101240-N44 1
To Next Page
