CX70/CR70 (MS-1755) Disassembly Guide
9、 LCD MODULE ASSY

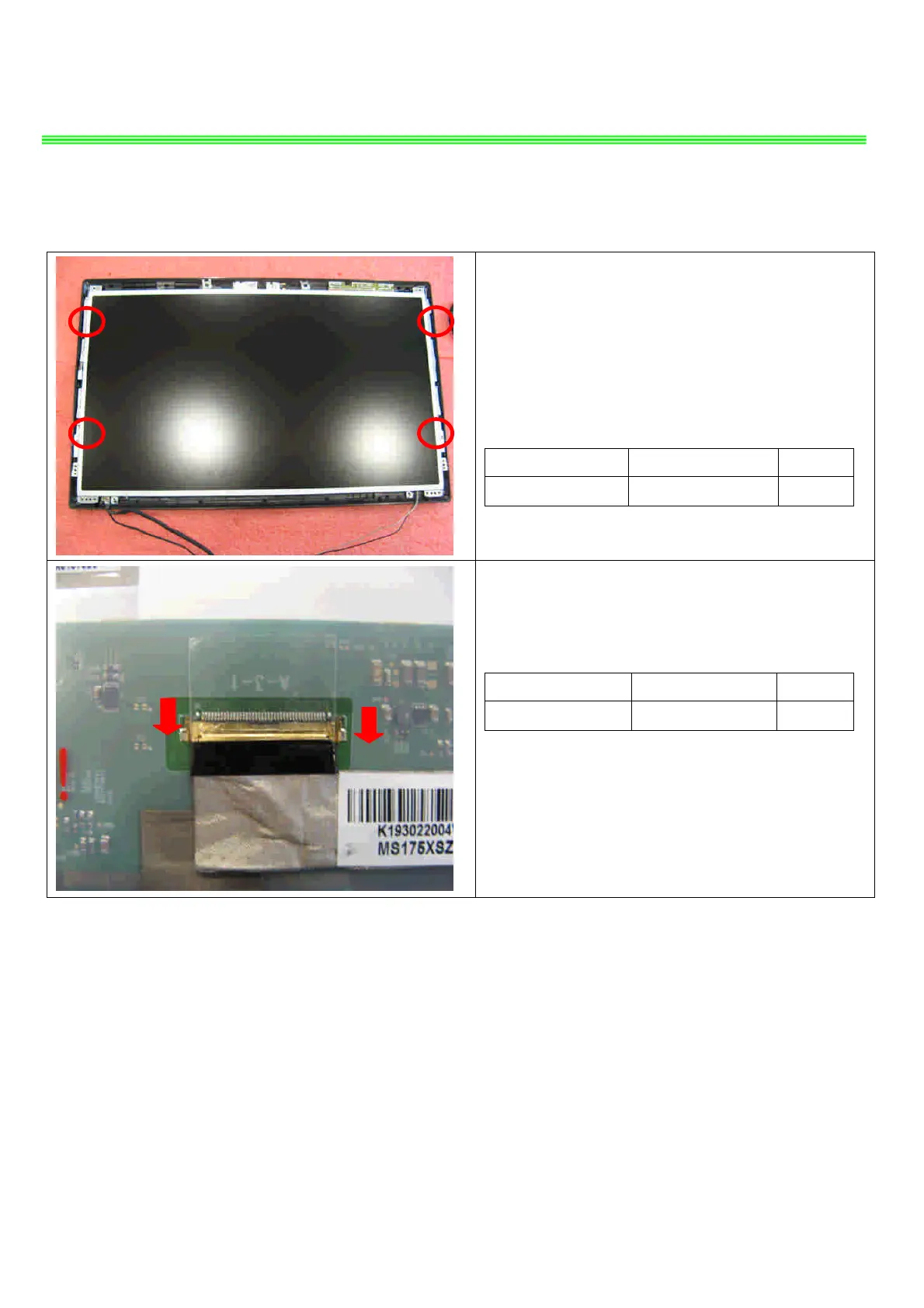

9.7 ： Remove the 4 screws (M2.5*4.5mm), then
remove the camera cable and remove the
display module from LCD cover.
Attention: the screw driver torque is 2.8-3.2Kgf-cm
Component P/N Qty
Screw E43-1254503-G68 4
9.8：Remove the LVDS cable from display module.
Component P/N Qty
LVDS Cable K19-3022004-H39 1
To Next Page
