Motherboard Jumpers
Motherboard Jumpers
⚠
Important
Avoid adjusting jumpers when the system is on; it will damage the motherboard.

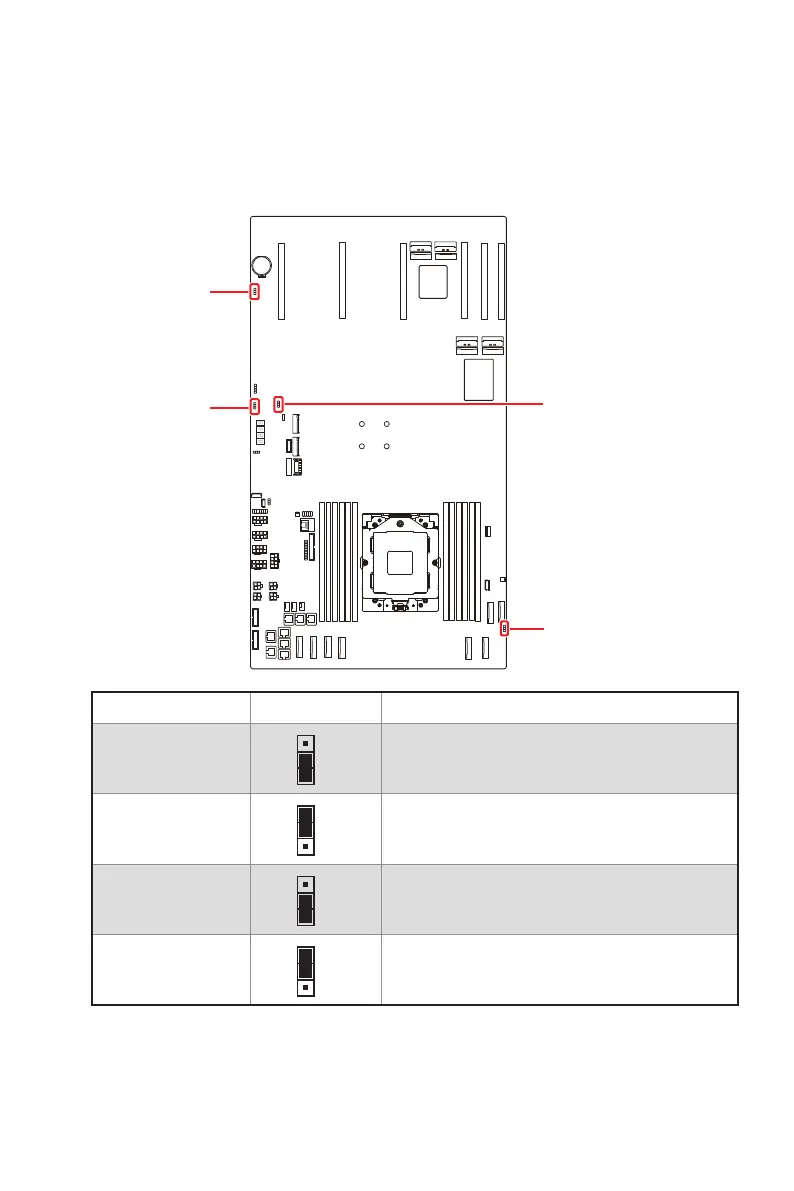

JUID_SEL1
JSEL_BMC1
JSATA_NVME_SW1
JRTC_CLR1
Jumper Name Default Setting Description
JRTC_CLR1
1
1-2: Normal (Default)
2-3: Clear CMOS
JUID_SEL1
1
1-2: UID Button (Default)
2-3: BMC RST Button
JSEL_BMC1
1
1-2: BMC2
2-3: BMC1 (Default)
JSATA_NVME_SW1
1
1-2: JMCIO1~2 setting to SATA SIGNAL
2-3: JMCIO1~2 setting to NVME SIGNAL (Default)
