MSI G4101-01 - M.2 M Key; Installing an M.2 SSD

46
M.2 M Key
M.2 M Key

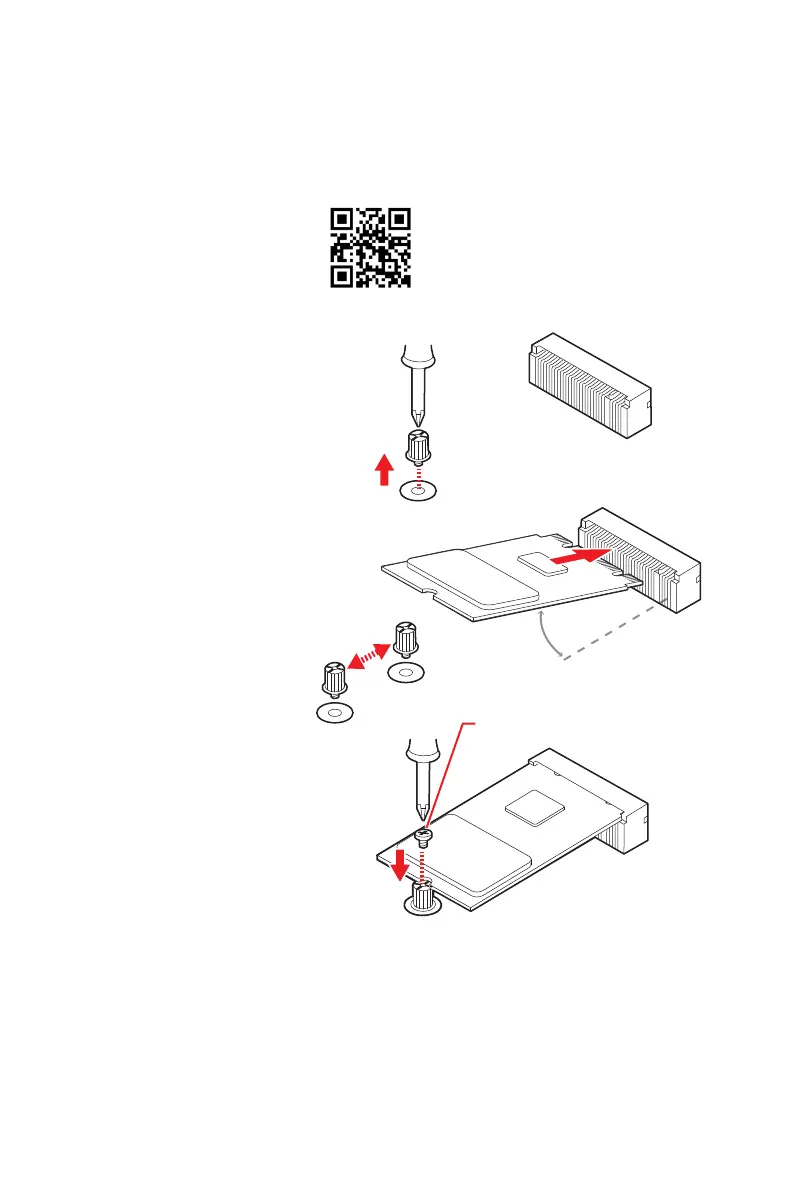

Installing an M.2 SSD
⚽
Video Demonstration
Watch the video to learn how to
Install M.2 SSD.
2. Move and fasten the
M.2 riser screw to the
appropriate location
according your M.2 SSD
size.
3. Insert your M.2 SSD
into the M.2 slot at a
30-degree angle.
4. Secure the M.2 SSD in
place with the supplied
M.2 screw.
1. Loosen the M.2
riser screw from the
motherboard.
30°
Supplied M.2 screw
