41
CPU & Cooler

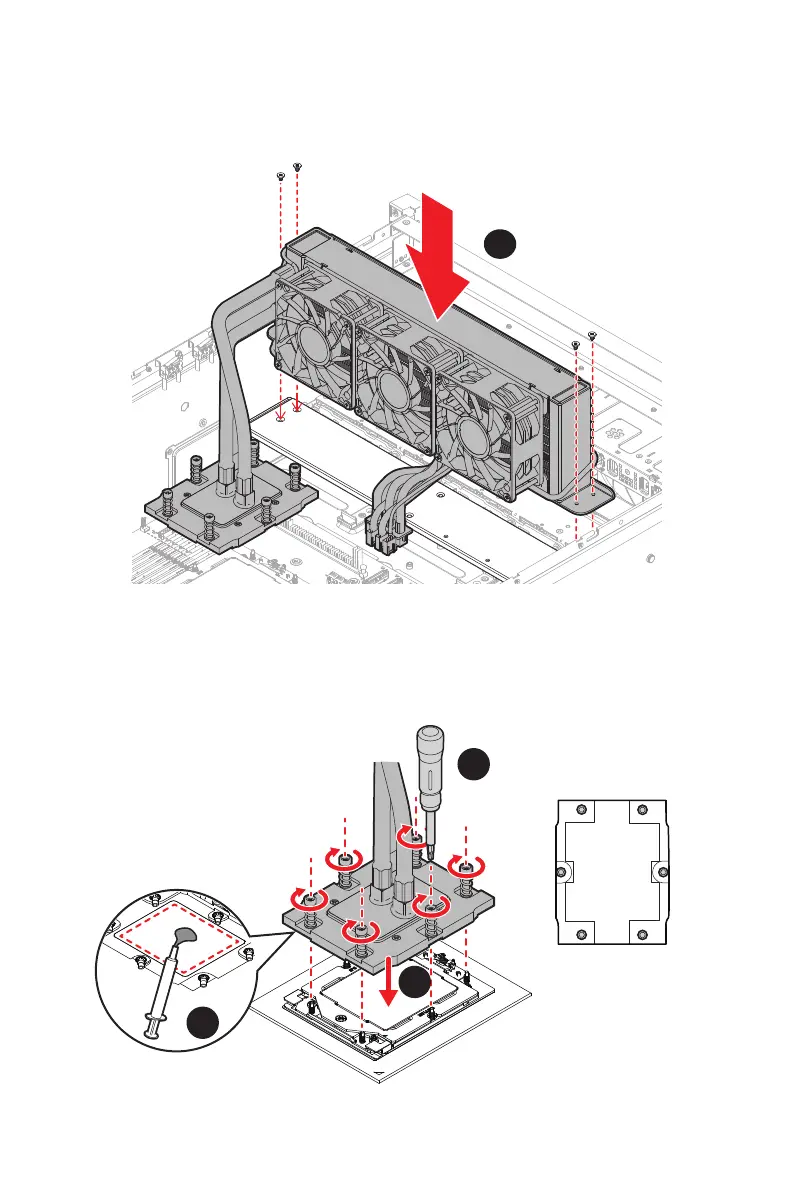

3. Ensure precise alignment of the module’s bottom panel screw holes with the
mounting bar’s corresponding openings. Secure them with the M3 screws that
were previously removed.
33
4. For peak thermal performance, apply proper amount of thermal paste to the
bottom center of the heatsink. (Skip this step if there is pre-applied thermal paste.)
5. Align the 6 screw holes on its bottom with the system board’s studs, then lower the
CPU water block until it rests firmly in place.
6. Use a torque screwdriver to securely fasten all screws in a diagonal sequence.
44
55
66
#1
#2
#3#5
#4
#6
To Next Page
