MSI G4101-01 - Page 48

48
GPGPU Card

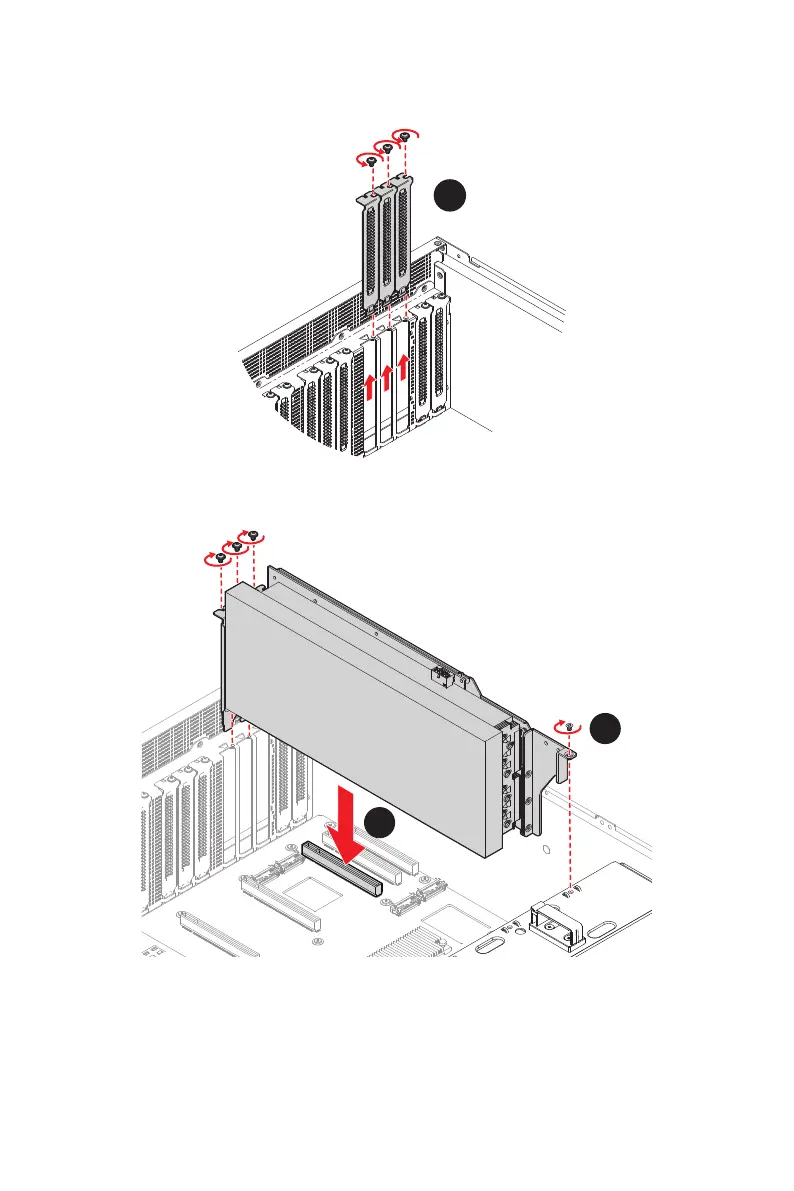

3. Loosen the screws on the rear side of the chassis to remove the PCIe bracket.
33
4. Align the GPGPU card with the riser slot and insert it until it is fully seated.
5. Tighten the screws to securely fix the GPGPU card assembly in place.
44
55
∙ Follow the above procedures to install other GPGPU cards.
