MSI G4101-01 - Page 9

9

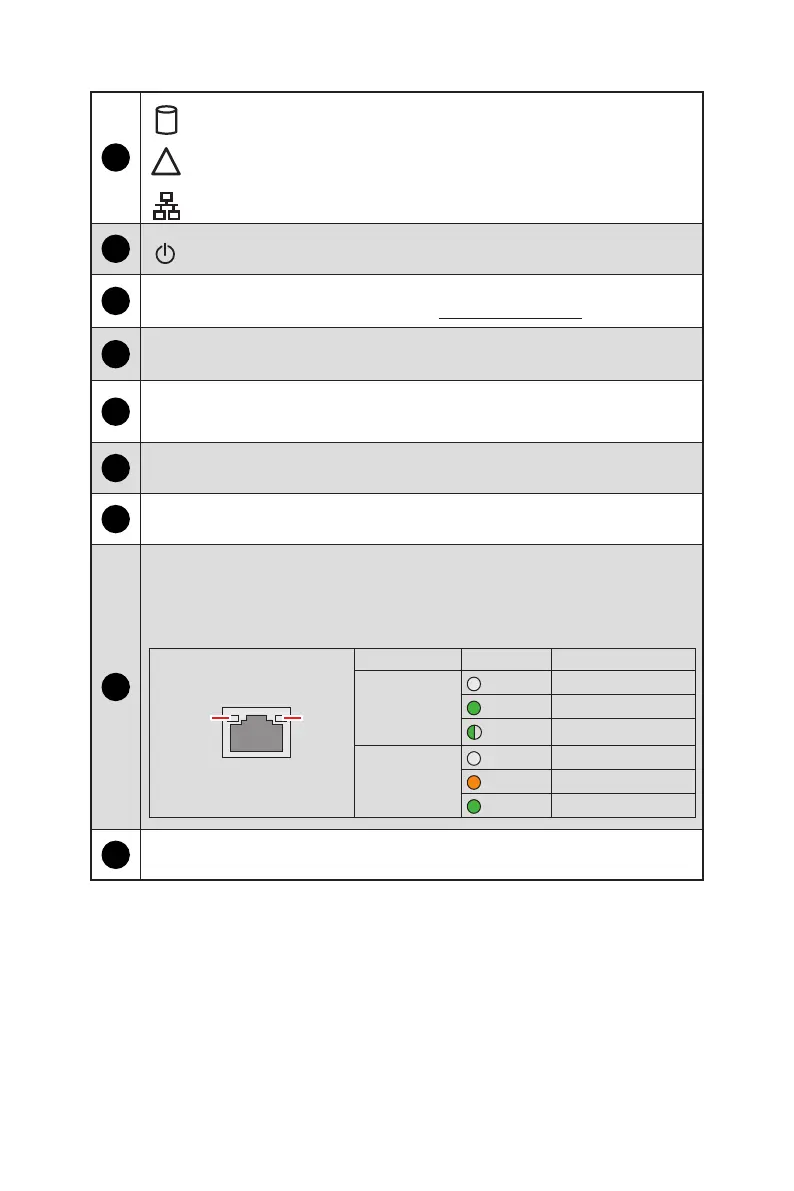

System Overview
11
M.2 Activity LED
!
System Status LED
1
MLAN LEDs
22
System Power Button/ LED
33
UID LED Button
(or BMC Reset Button, configured using jumper: JUID_SEL1)
44
System Reset Button
55
USB 3.2 Gen 1 Type-A Port
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
66
UID Button
77
VGA Port
88
GbE RJ45 Port (for Mgmt.)
The standard RJ45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off
No link
Green
Linked
Blinking
Data activity
Speed LED
Off
10 Mbps
Orange
100 Mbps
Green
1 Gbps
99
RJ45 Serial Console Port
