MSI H310M PRO-C

6



Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection


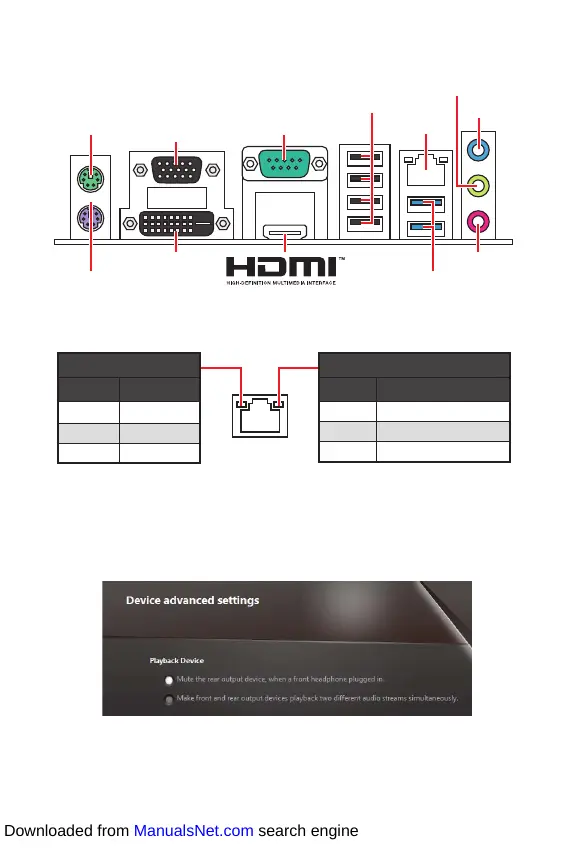

PS/2 Mouse
PS/2 Keyboard
1Gbps LAN
USB 2.0 Type-A
COM
Line-In
Mic-In
Line-Out
USB 3.2 Gen 1
5Gbps Type-A
DVI-D
VGA

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.
