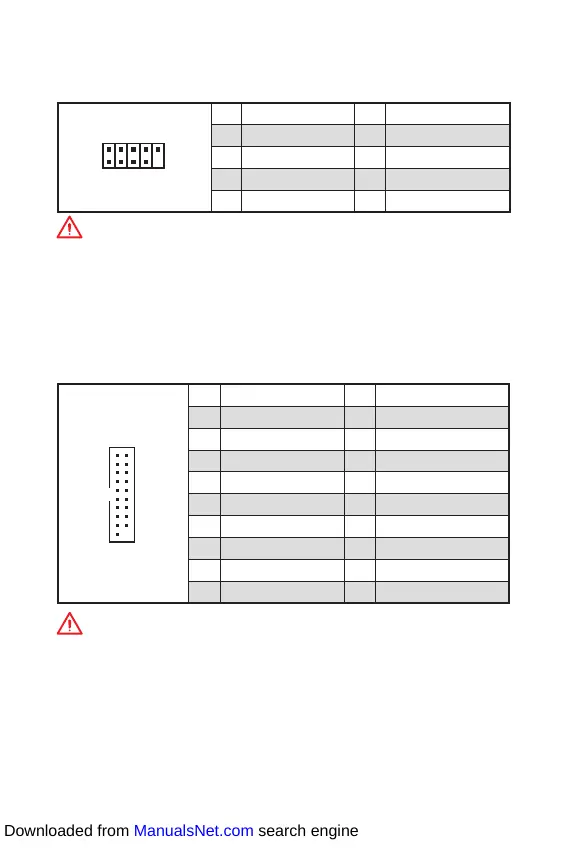

I/O

JUSB2: USB 3.1 Gen1

USB 3.1 Gen1󳰙 󶪓

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 NC 20 No Pin

󴱄󳞱

󹧖󴻢󳖔󳰛󶪔󴦜󳰛󶪔󲛆󱿷󴟆󲏝󳳇󱩫

 

JUSB1: USB 2.0

USB 2.0󳰙 󶪓

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

󴱄󳞱
