10
DIMM Slots

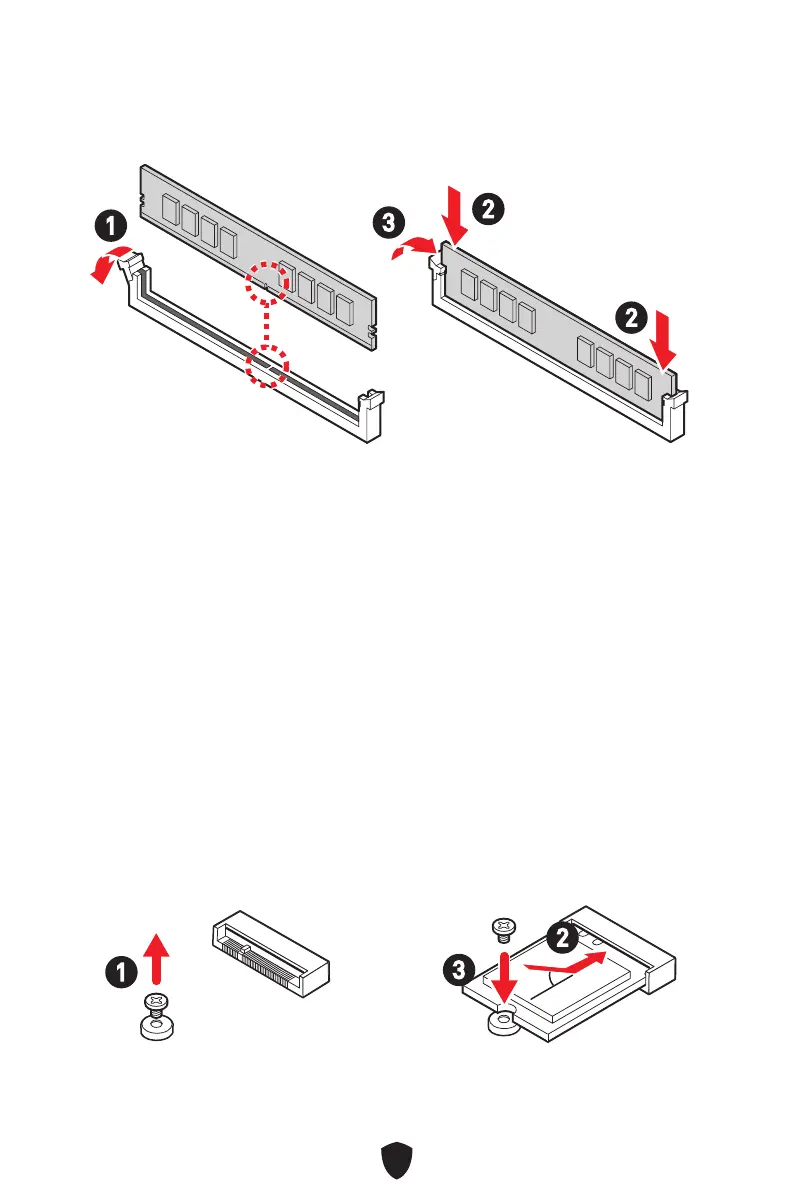

Please install the memory module into the DIMM slot as shown below.
Important
To ensure system stability for Dual channel mode, memory modules must be of the
same type, number and density.
Some memory modules may operate at a lower frequency than the marked value
when overclocking due to the memory frequency operates dependent on its Serial
Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory
frequency if you want to operate the memory at the marked or at a higher frequency.
It is recommended to use a more efficient memory cooling system for full DIMMs
installation or overclocking.
The stability and compatibility of installed memory module depend on installed CPU
and devices when overclocking.
Please refer to www.msi.com for more information on compatible memory.
1
3
2
2
M2_WIFI1: M.2 Slot (Key E, for PRO H610M-G DDR4 &
PRO H610M-B DDR4 )
Please install PCIe Wi-Fi module into M2_WIFI1 slot as shown below.
30º
30º
1
3
2
To Next Page
