7

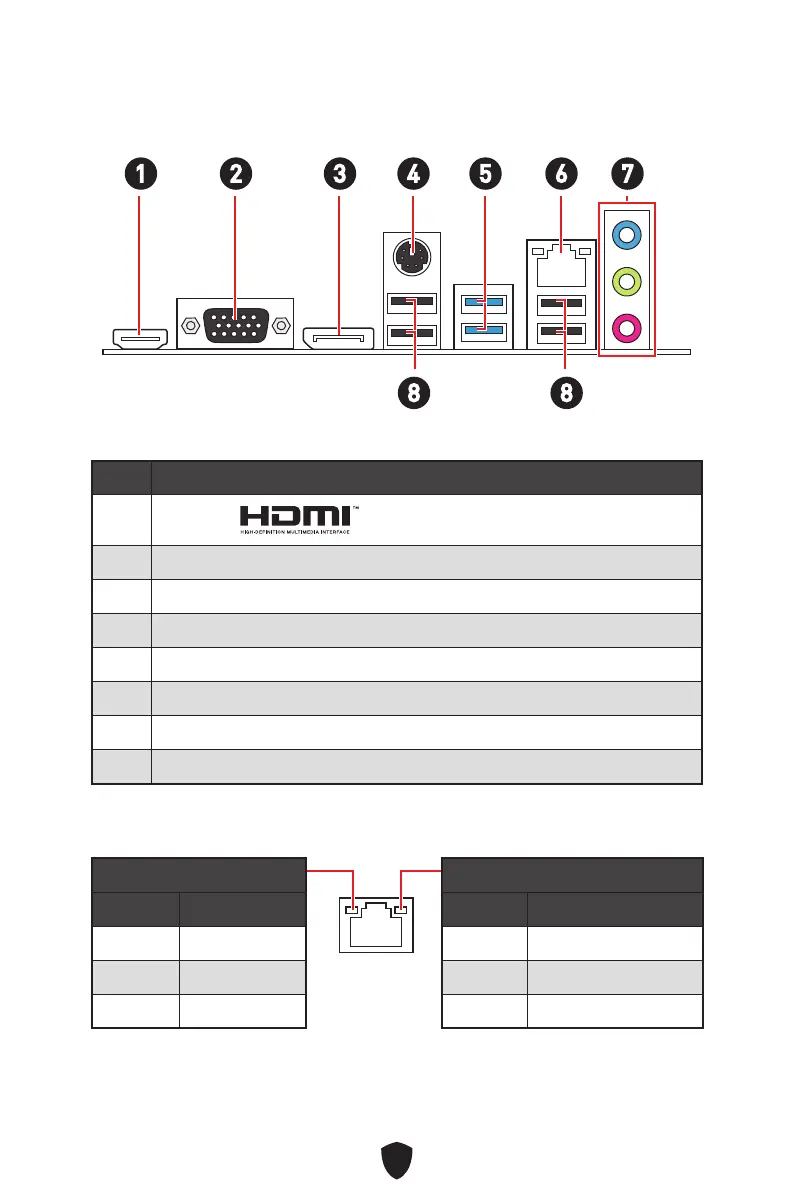

Back Panel Connectors
1
8 8
2 3 4 5 76
Item Description
1
HDMI port
2 VGA port
3 DisplayPort (For PRO H610M-G DDR4 only)
4 PS/2 keyboard/ mouse combo port
5 USB 3.2 Gen 1 5Gbps Type-A ports (From B660/ H610 chipset)
6 1 Gbps LAN ports
7 Audio jacks
8 USB 2.0 Type-A ports (From B660/ H610 chipset)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
