M2_1: M.2 Slot (Key M)

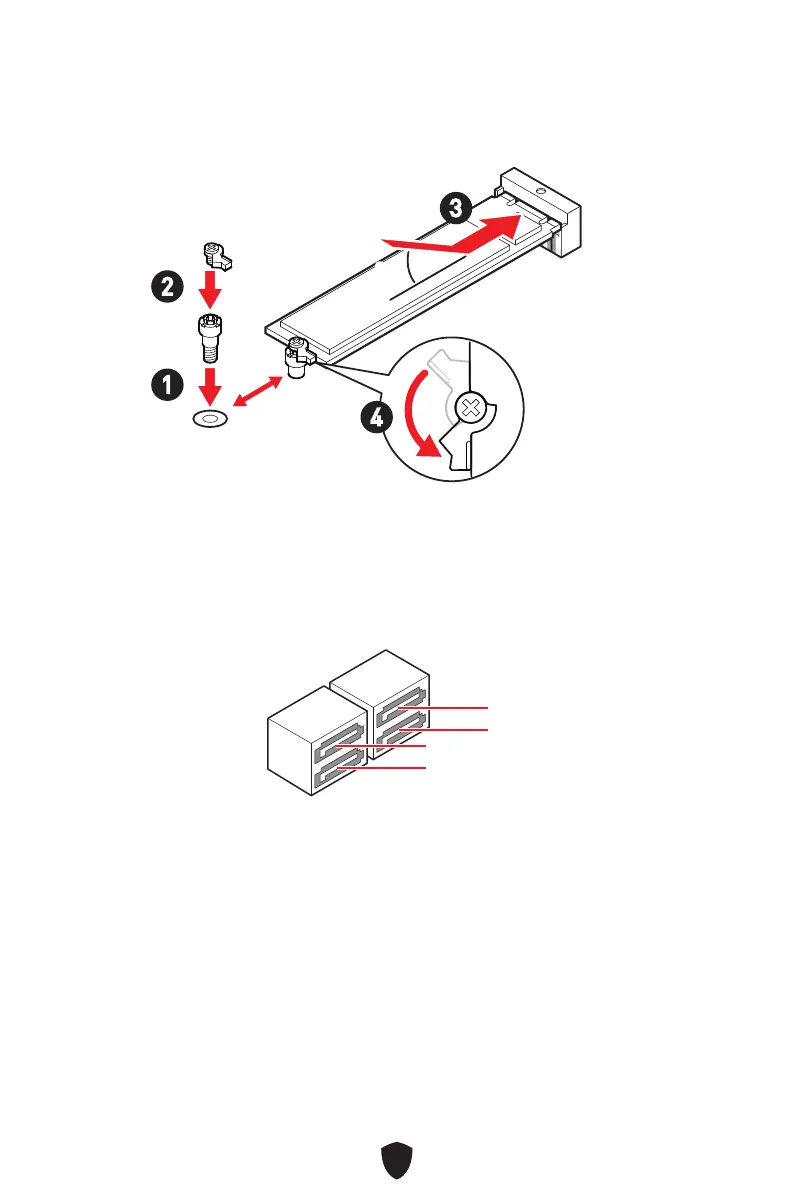

Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below.

SATA5~8: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA5

SATA7

SATA6

SATA8



Important



Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.



SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.



SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
