D
C
A
12345678
G
F
E
B

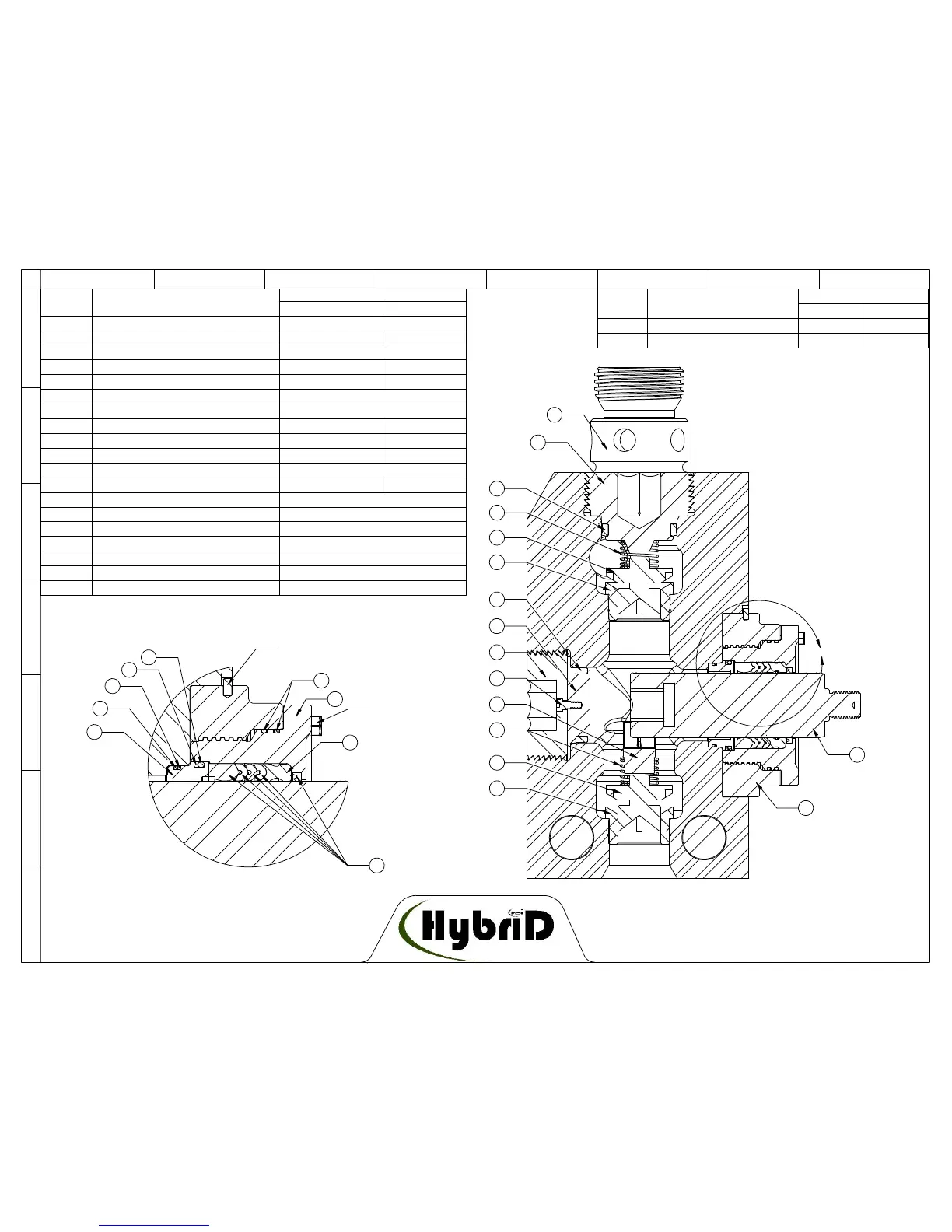

F
L
U
ID
E
N
D
A
S
S
E
M
B
L
Y
-
S
E
C
T
IO
N
,
2
.
7
5
"
-
3
.
0
0
"
11
4
20
3
21
11
13
15
16
17
17
18
18
19
14
16
A
ITEM NO. DESCRIPTION
PART NUMBER
2.75" 3.00"
1 BACK-UP RING, SB FE SIDE OC0077
2 BACK-UP RING, SB PE SIDE OC0077 OC0064
3 FLUID END ADAPTER FEC0402 (600,1000) FEC0494 (1300)
4 FLUID END PLUNGER FEC0313 FEC0314
5 LANTERN RING FEC0353 FEC0354
6 O-RING, PACKING NUT OC0151
7 O-RING, SB FE SIDE OC0076
8 O-RING, SB PE SIDE OC0076 OC0085
9 PACKING NUT FEC0346 FEC0347
10 PACKING SET FEC0069 FEC0033
11 SEAL, SUCTION/DISCHARGE COVER FEC0095
12 STUFFING BOX ADAPTER FEC0066 FEC0010
13 SUCTION COVER GLAND FEC0338
14 SUCTION COVER NUT FEC0339
15 SUCTION COVER NUT BOLT HC0454
16 VALVE FEC0504 (INSERT FEC0504-I)
17 VALVE SEAT FEC0453
18 VALVE SPRING FEC0093
19 VALVE STOP ASSEMBLY FEC0382
ITEM NO. DESCRIPTION
PART NUMBER
TRIPLEX QUINTUPLEX
20 DISCHARGE COVER NUT FEC0089 FEC0149
21 GAUGE CONNECTION FEC0096 FEC0151
12
6
HC0507
DOWEL PIN
1
2
5
7
8
9
10
RETENTION SCREW
HC0946
DETAIL A
Revision K 03/12/2019
MSI - A Division of Dixie Iron Works, Ltd. All rights reserved.
Page 45
