MSI Hybrid Triplex - Page 53

HC0946

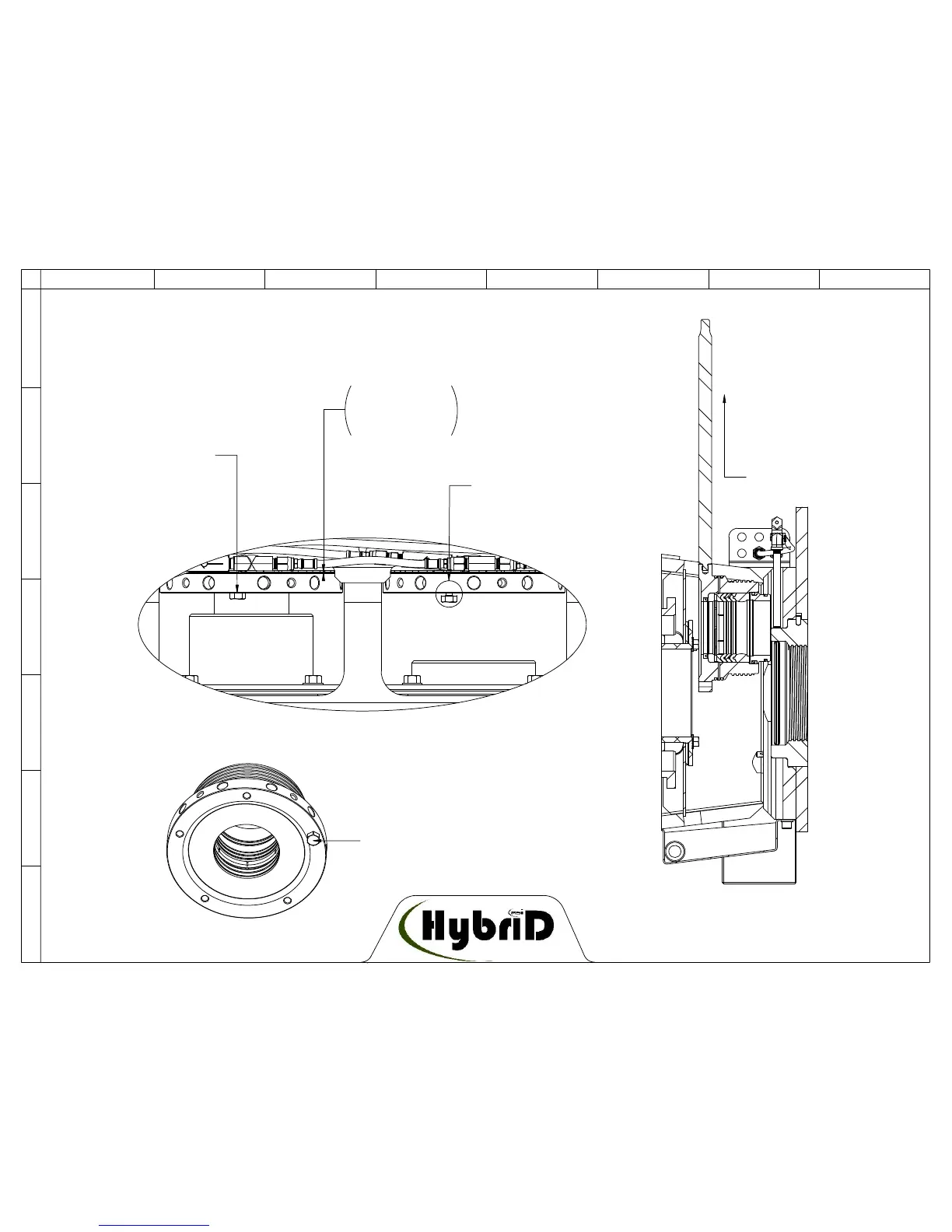

RETENTION SCREW
SCREW WILL SHOW LIKE THIS
WHEN IT IS FULLY ENGAGED
INTO THE ROTATION
ARRESTING FEATURES OF
THE FLUID END ADAPTER.
PUMP READY FOR
OPERATION IN THIS CASE.
SCREW WILL SHOW LIKE THIS
WHEN IT IS FULLY DISENGAGED
FROM THE ROTATION
ARRESTING FEATURES OF THE
FLUID END ADAPTER.
PACKING NUT READY FOR
REMOVAL IN THIS CASE.
1/32"
APPROX GAP WHEN
PACKING NUT
IS FULLY ENGAGED
EXTRACT UP AND OUT
USING PACKING NUT TOOL
F
E
D
C
A
12345678
G
B
P
A
C
K
IN
G
N
U
T
I
N
S
T
A
L
L
A
T
IO
N
A
N
D
R
E
M
O
V
A
L
