Hardware Setup

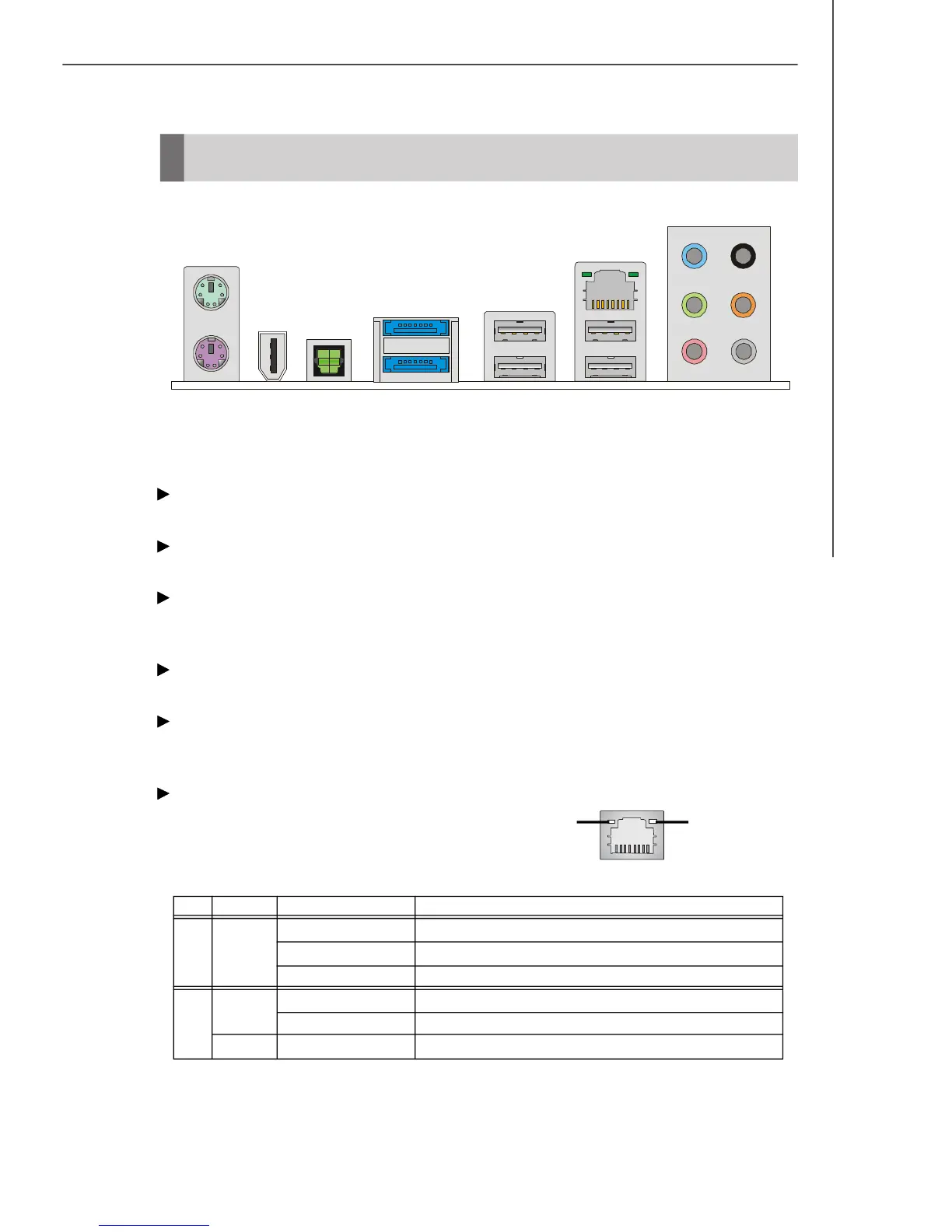

Back Panel
Mouse/Keyboard
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
IEEE 1394 Port (optional)
The 1394 port on the back panel provides connection to 1394 devices.
Optical S/PDIF-Out
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.
eSATA Port (optional)
The eSATA port is for attaching the eSATA external hard drive.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
LAN
The standard RJ-45 LAN jack is for connection to
the Local Area Network (LAN). You can connect
a network cable to it.
Keyboard
USB Port
Line-In
Mouse
RS-Out
CS-Out
SS-Out
Line-Out
Mic
IEEE 1394
Port (optional)
Optical
S/PDIF-Out
USB Port
eSATA Port
(optional)
LED Color LED State Condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
LAN
Green / OrangeYellow
