2-9
Hardware Setup

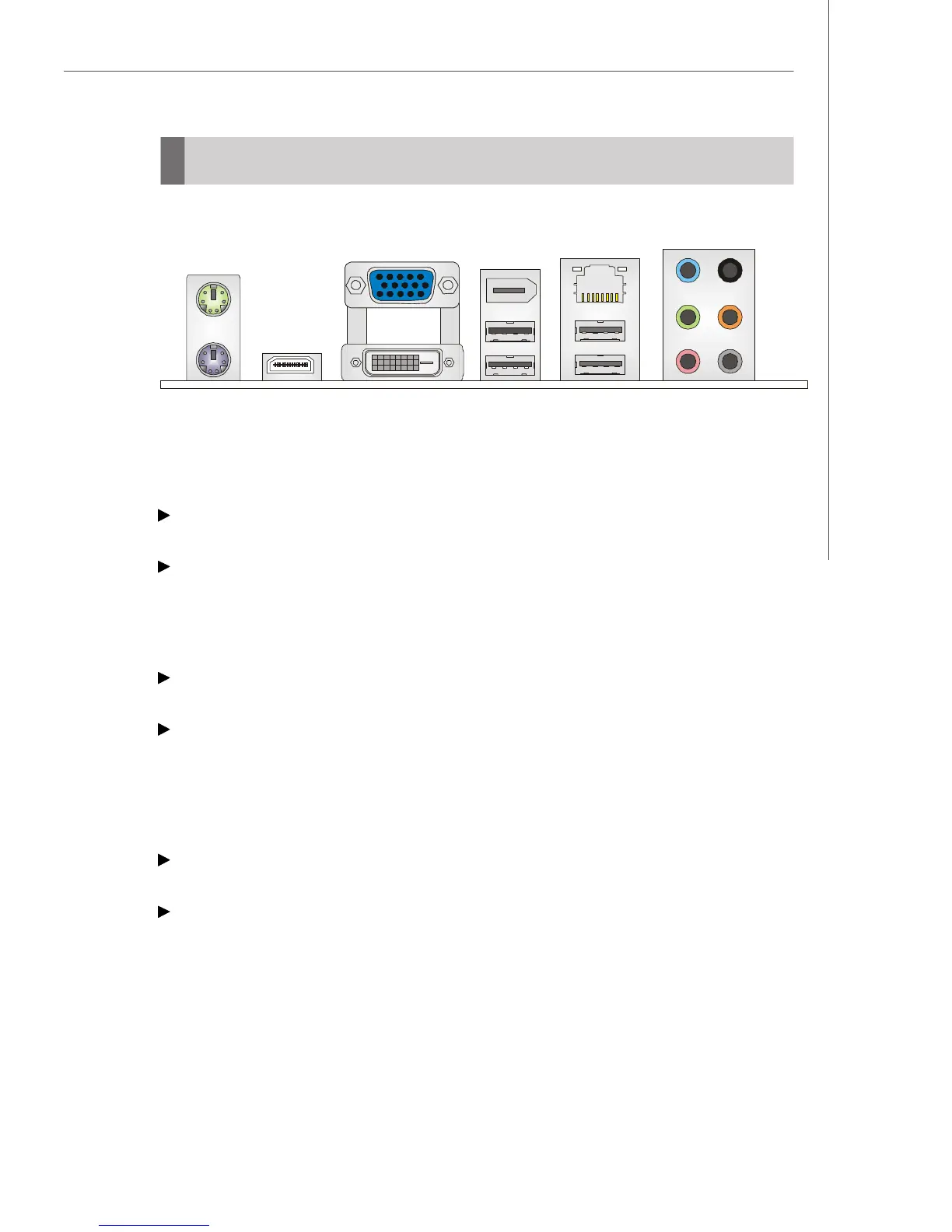

Back Panel
Mouse/Keyboard
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
HDMI Port (Optional)
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams. HDMI supports all TV format, includ-
ing standard, enhanced, or high-definition video, plus multi-channel digital audio on a
single cable.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI-D Port (Optional)
The DVI-D (Digital Visual Interface-Digital) connector allows you to connect an LCD
monitor. It provides a high-speed digital interconnection between the computer and
its display device. To connect an LCD monitor, simply plug your monitor cable into the
DVI connector, and make sure that the other end of the cable is properly connected
to your monitor (refer to your monitor manual for more information.)
IEEE 1394 Port (Optional)
The 1394 port on the back panel provides connection to 1394 devices.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
Keyboard USB
Line-In
Mouse
RS-Out
CS-Out
SS-Out
Line-Out
Mic
HDMI
(Optional)
VGA
IEEE 1394
(Optional)
DVI-D
(Optional)
USB
LAN
