Installing the TV-Out Bracket
Important
If you intend to use the TV-out function, please note that the TV-Out bracket
supports to connect one TV only. Meanwhile you can not connect two TVs to
this bracket. Select one type of the TV-out connector to connect to appropriate
TV.
1. Take out the TV-Out bracket.
2. Locate the TV-out connector (JTV1) on the mainboard.
3. Connect the TV-Out bracket to the connector. Align the foolproof design with the
pin layout of the connector to avoid mis-inserting.
4. Place the TV-Out bracket into the slot of your system case.

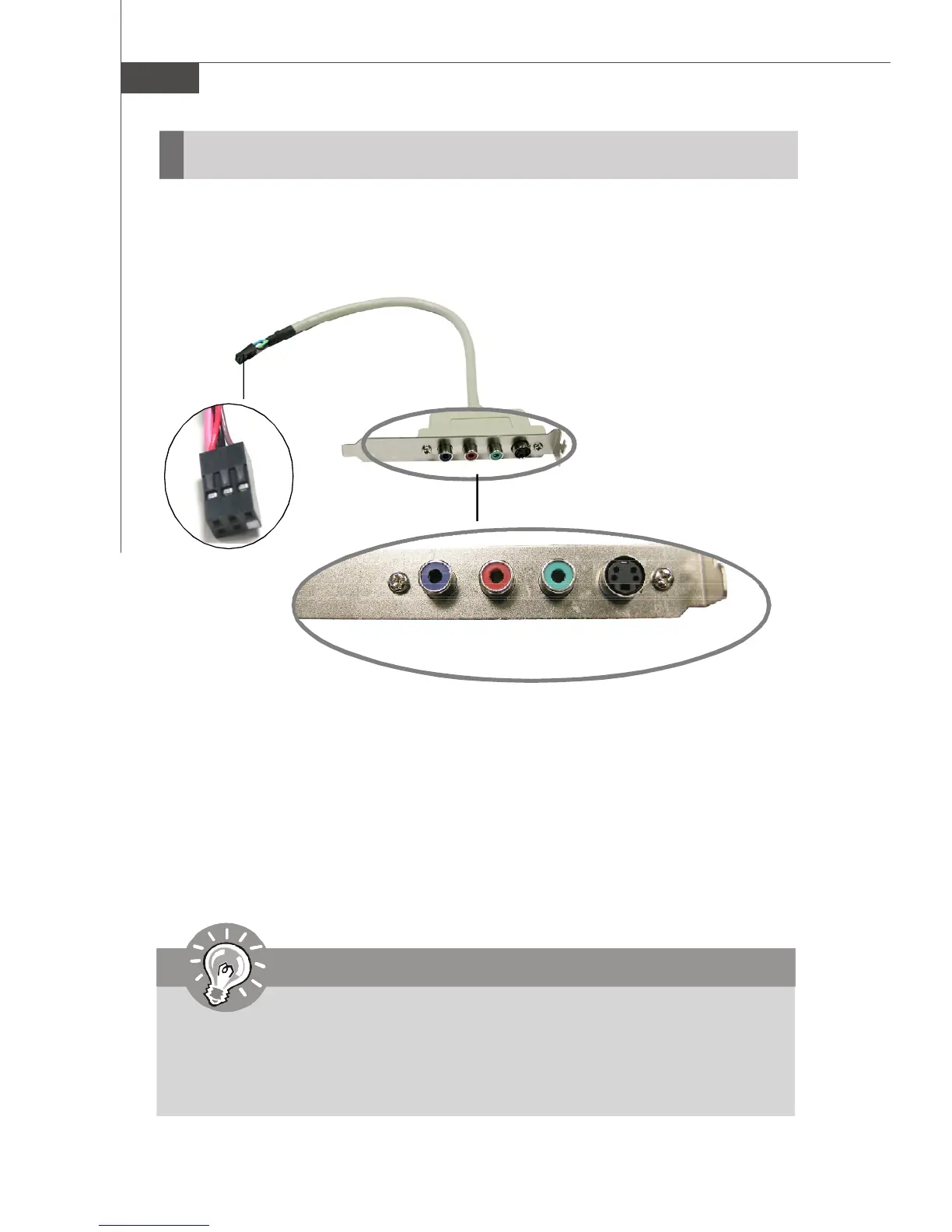

TV-Out Bracket
TV-Out Connector
(S-Video)
TV-Out Connector
(HDTV)
Foolproof
design
