MSI MAG B550 TOMAHAWK - Rear I;O Panel; LAN Port LED Status Table; Audio Ports Configuration

10

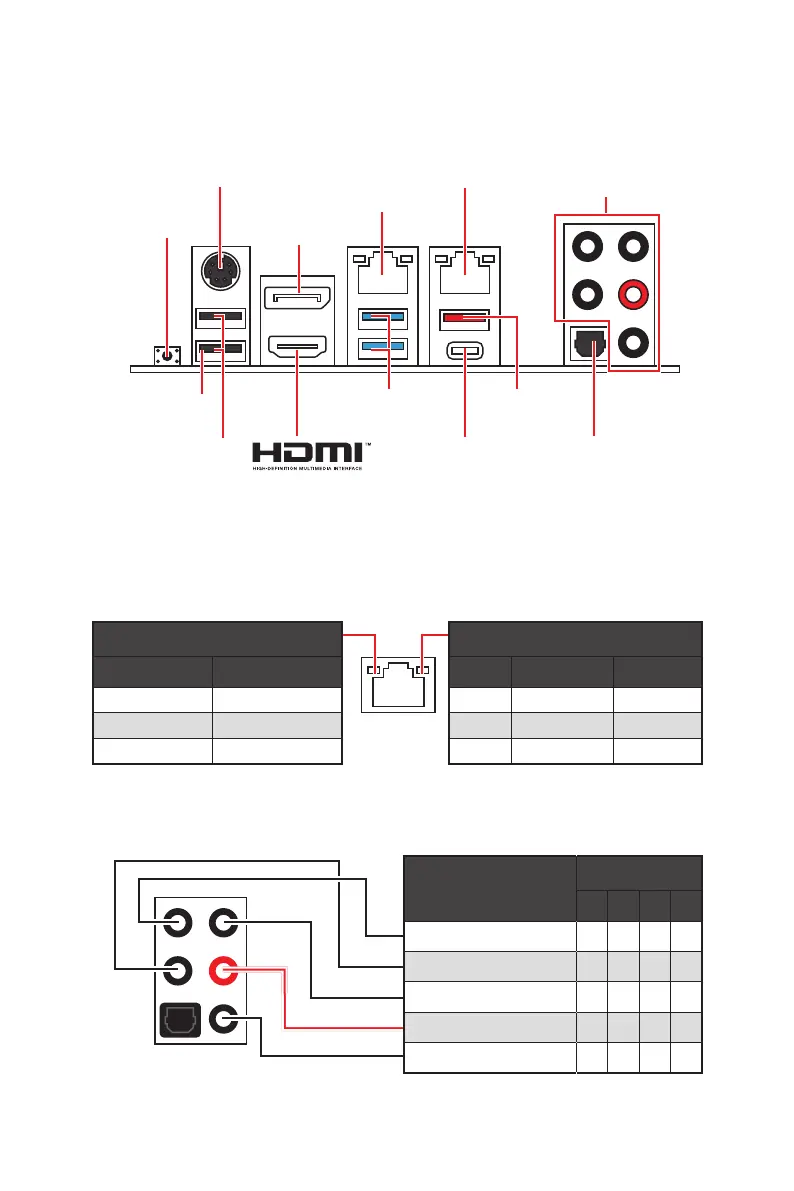

Rear I/O Panel
USB 3.2 Gen 1

USB 3.2 Gen 2

Flash BIOS
Port
Rear I/O Panel
PS/2 Combo port
2.5 Gbps LAN
1 Gbps LAN
DisplayPort
USB 2.0

Audio Ports
Optical

USB 3.2 Gen 2

Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
LAN Port LED Status Table
 Flash BIOS Port/ Buttonge 33 for Updating BIOS with Flash
BIOS Button.
Flash BIOS
Button

Audio Ports

2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
Speed LED
Status 2.5 Gbps LAN 1 Gbps LAN
Off 10 Mbps 10 Mbps
Green 100/ 1000 Mbps 100 Mbps
Orange 2.5 Gbps 1 Gbps
