MSI MEG X570S ACE MAX

38
Overview of Components
M2_1~4: M.2 Slots (Key M)
2
2
2

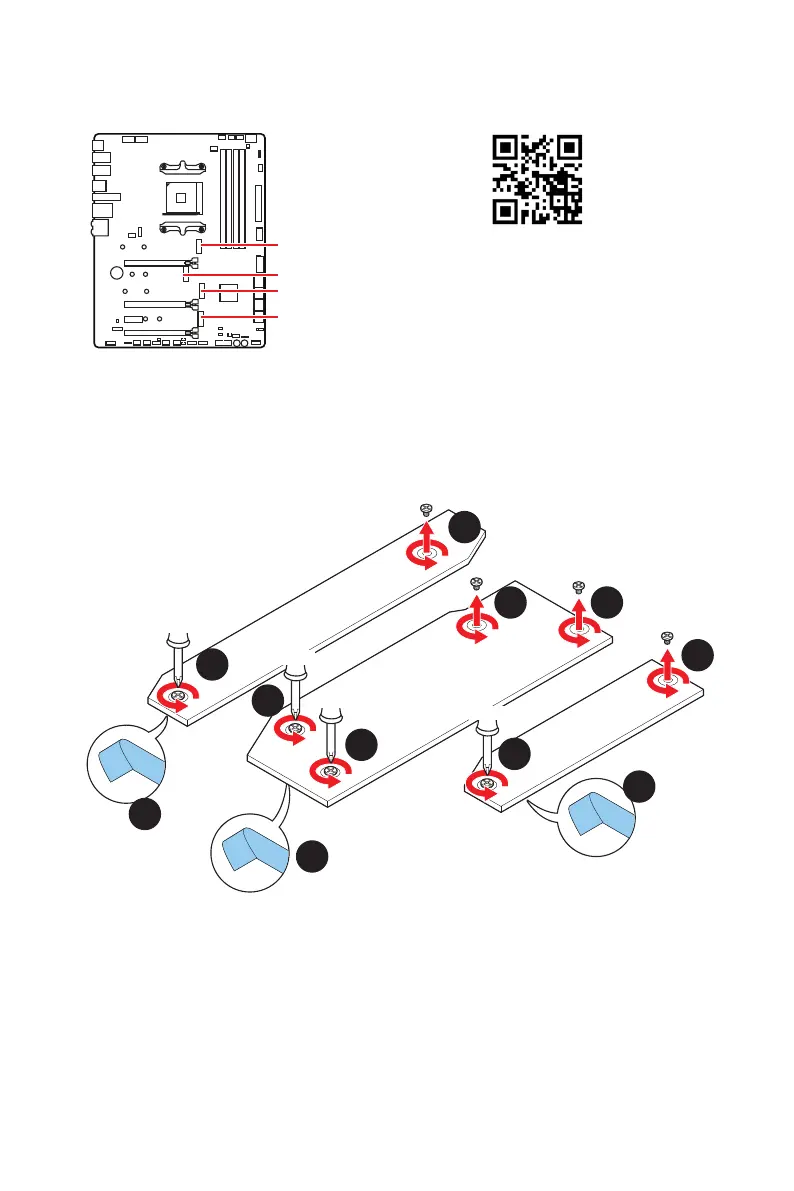

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
1
1
1
1
1
1 1
1
M2_1 (CPU)
M2_2 (Chipset)
M2_3 (Chipset)
M2_4 (Chipset)
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
M2_1
M2_2 & M2_3
M2_4
