30

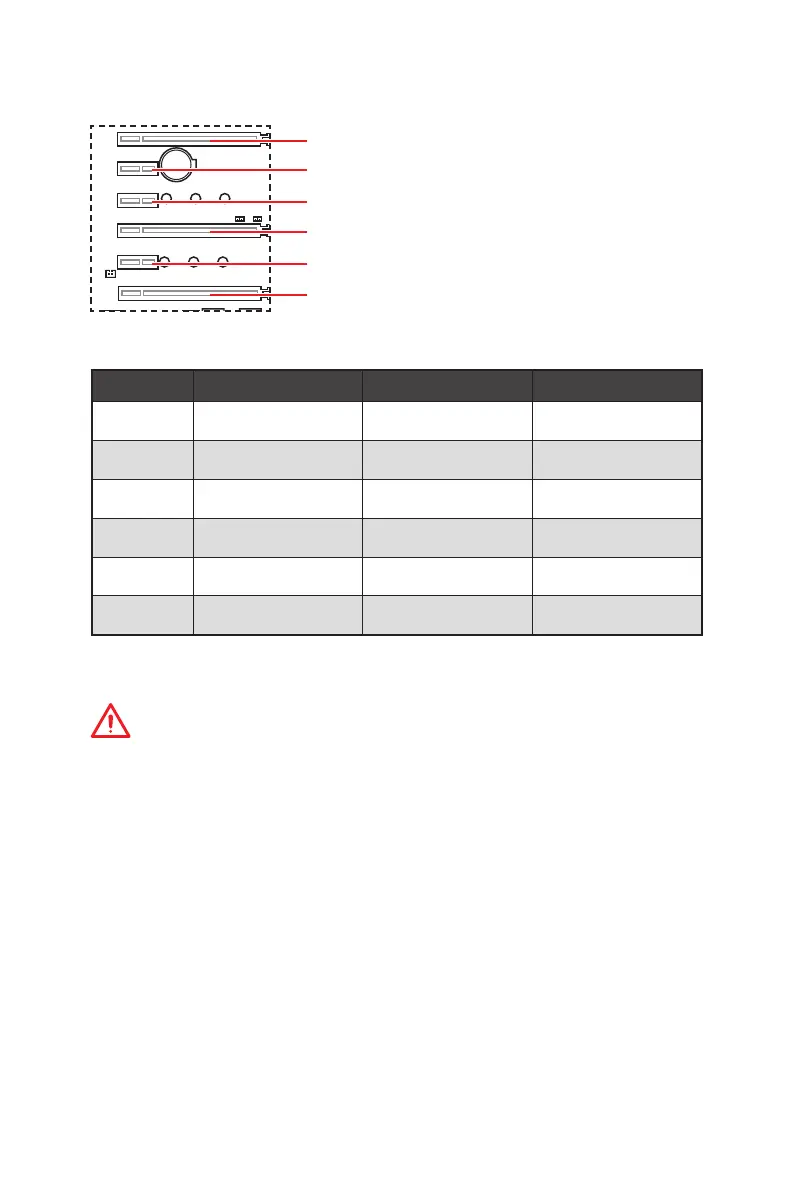

Overview of Components
BAT1
PCI_E1~6: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 (CPU lanes)
PCI_E2: PCIe 3.0 x1 (PCH lanes)
PCI_E3: PCIe 3.0 x1 (PCH lanes)
PCI_E5: PCIe 3.0 x1 (PCH lanes)
PCI_E4: PCIe 3.0 x8 (CPU lanes)
PCI_E6: PCIe 3.0 x4 (CPU lanes)
Multiple graphics cards installation recommendation
Graphics Card Single 2-Way 3-Way*
PCI_E1 @ 3.0 x16 @ 3.0 x8 @ 3.0 x8
PCI_E2 3.0 x1 3.0 x1 3.0 x1
PCI_E3 3.0 x1 3.0 x1 3.0 x1
PCI_E4
@ 3.0 x8 @3.0 x4
PCI_E5 3.0 x1 3.0 x1 3.0 x1
PCI_E6
@3.0 x4
(@: graphics card slot, : unavailable, *: CrossFire only)
Important
y
If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight and to prevent deformation
of the slot.
y
For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
y
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
cards documentation to check for any necessary additional hardware or software
changes.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MEG Z390 ACE and is the answer not in the manual?

MSI MEG Z390 ACE Specifications

General IconGeneral
Processor socketLGA 1151 (Socket H4)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Audio chipRealtek ALC1220
Component forPC
Motherboard chipsetIntel Z390
Audio output channels7.1 channels
Motherboard form factorATX
Windows operating systems supportedWindows 10
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory64 GB
Supported memory clock speeds2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4500 MHz
Supported memory module capacities16GB
PCI Express x1 (Gen 3.x) slots3
RAID levels0, 1, 5, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors2
Number of SATA II connectors0
Number of SATA III connectors6
BIOS typeUEFI AMI
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
LAN controllerKiller E2500
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version5.0
Ethernet interface typeGigabit Ethernet
Weight and Dimensions IconWeight and Dimensions
Depth244 mm
Width305 mm
