MSI MEG Z490 ACE

21

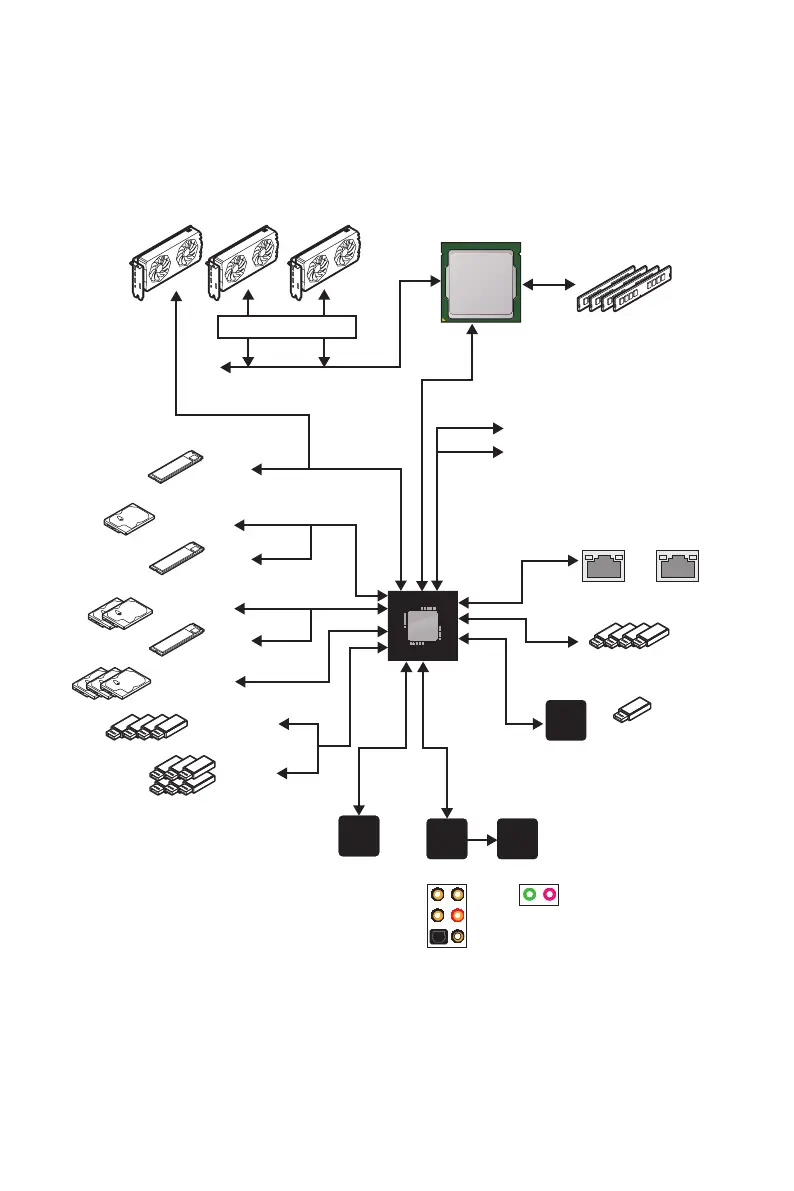

Block Diagram
Block Diagram
4x USB 3.2 Gen1
2 Channel DDR4 Memory
DMI 3.0
PCI Express Bus
PCH
Processor
NUVOTON
6687
Realtek
ALC1220
4x USB 3.2 Gen2
6x USB 2.0
ESS
E9018
ASMedia
3241
2x PCIe x1 slots
1x PCIe x4 slot
Rear Audio Jacks
Front Audio Jacks
1x M.2
Switch
1x Realtek 2.5G LAN + 1x Intel 1G LAN
1x M.2
1x M.2
1x SATA 6Gb/s
1x USB 3.2 Gen2x2
2x SATA 6Gb/s
3x SATA 6Gb/s
