36
Overview of Components
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1~2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

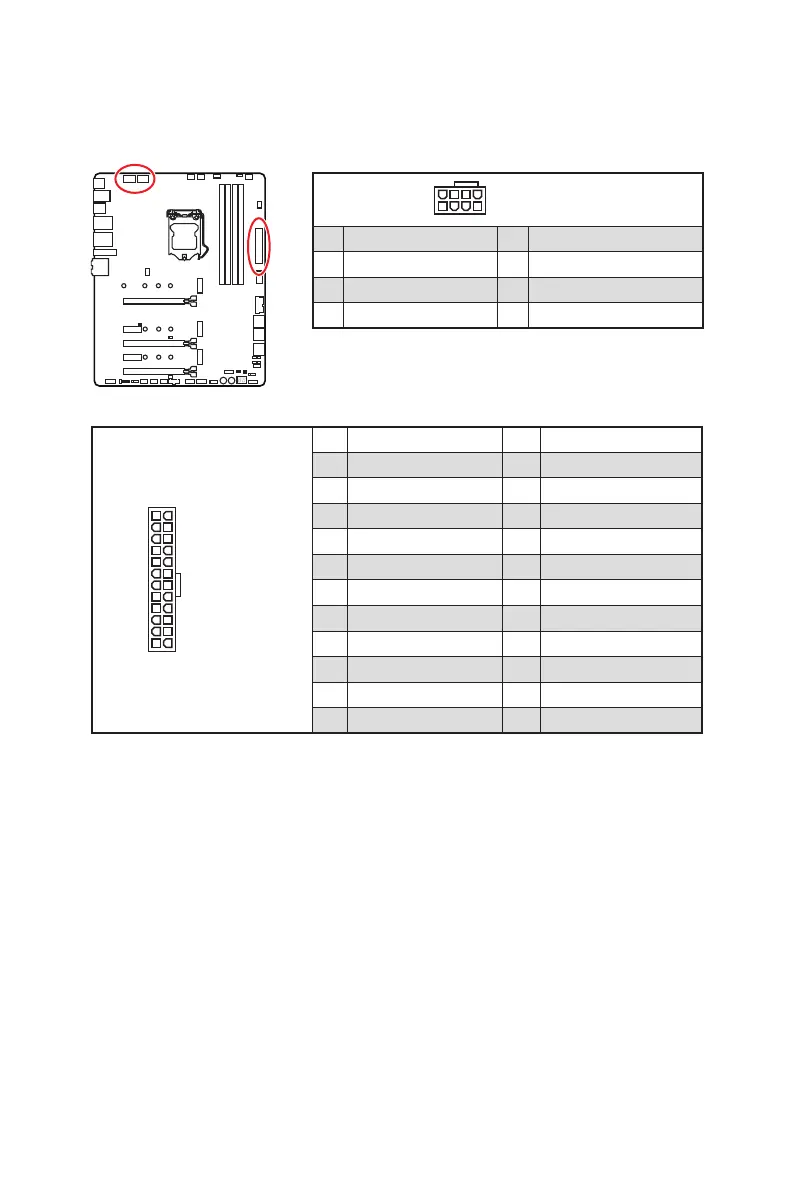

CPU_PWR1~2, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MEG Z490 ACE and is the answer not in the manual?

MSI MEG Z490 ACE Specifications

General IconGeneral
Processor socketLGA 1200 (Socket H5)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors1
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800 MHz
RAID levels0, 1, 5, 10
Number of HDDs supported6
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
DirectX version12.0
Parallel processing technology support2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors2
Number of SATA II connectors0
USB connector typeUSB Type-A, USB Type-C
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
LAN controllerRealtek RTL8125B, Intel I219-V
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version5.1
Ethernet interface type2.5 Gigabit Ethernet
Audio chipRealtek ALC1220
Cooling typePassive
Component forPC
Motherboard chipsetIntel Z490
Audio output channels7.1 channels
Motherboard form factorATX
Number of mounting holes9
Windows operating systems supportedWindows 10 x64
BIOS type-
Cables includedSATA
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Depth244 mm
Width305 mm
