MSI MEG Z690 ACE - M2_1~5: M.2 Slots (Key M); M2_1 slot Installation

37
Overview of Components

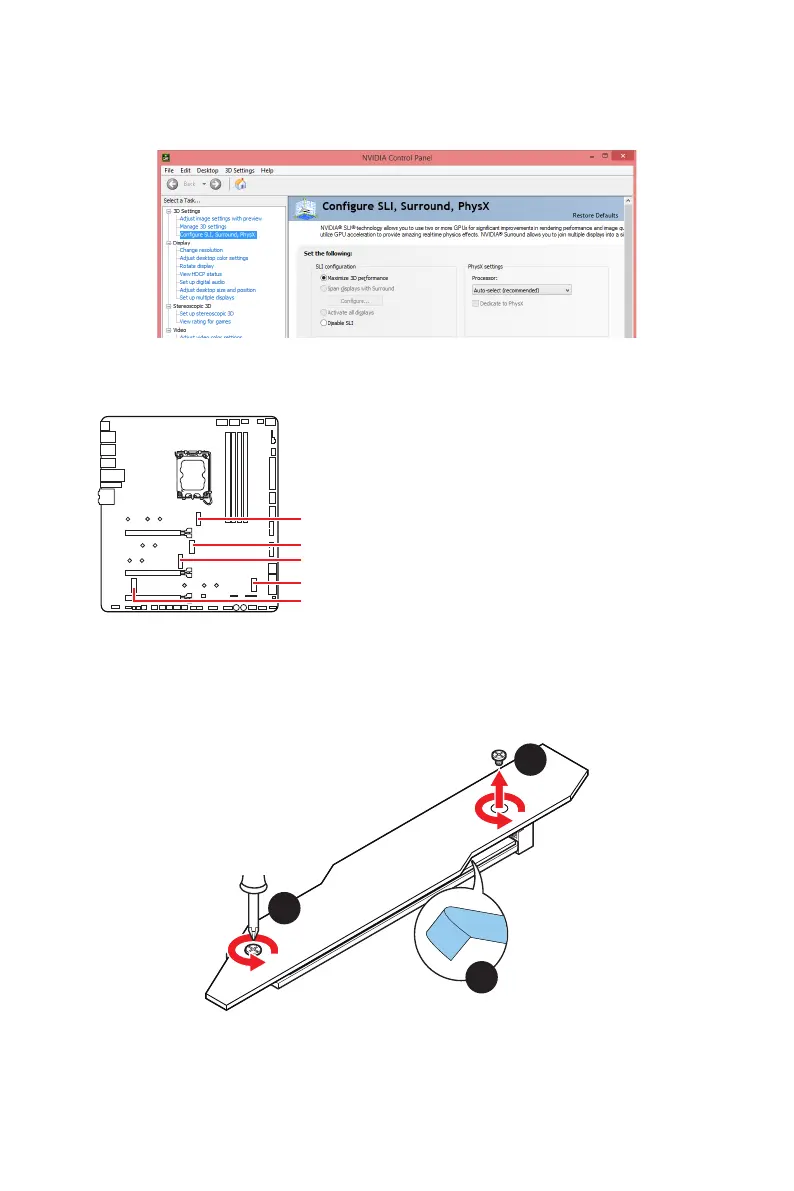

5. Right-click the Windows desktop and select NVIDIA Control Panel from the menu,
click on Configure SLI, Surround, PhysX in the left task pane and select Maximize
3D performance in the SLI configuration menu, and then click Apply.
M2_1~5: M.2 Slots (Key M)
M2_1
M2_2
M2_4
M2_5
M2_3
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
∙ M2_2~5 slots support Intel® Optane™
Memory.
M2_1 slot Installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
