Overview of Components

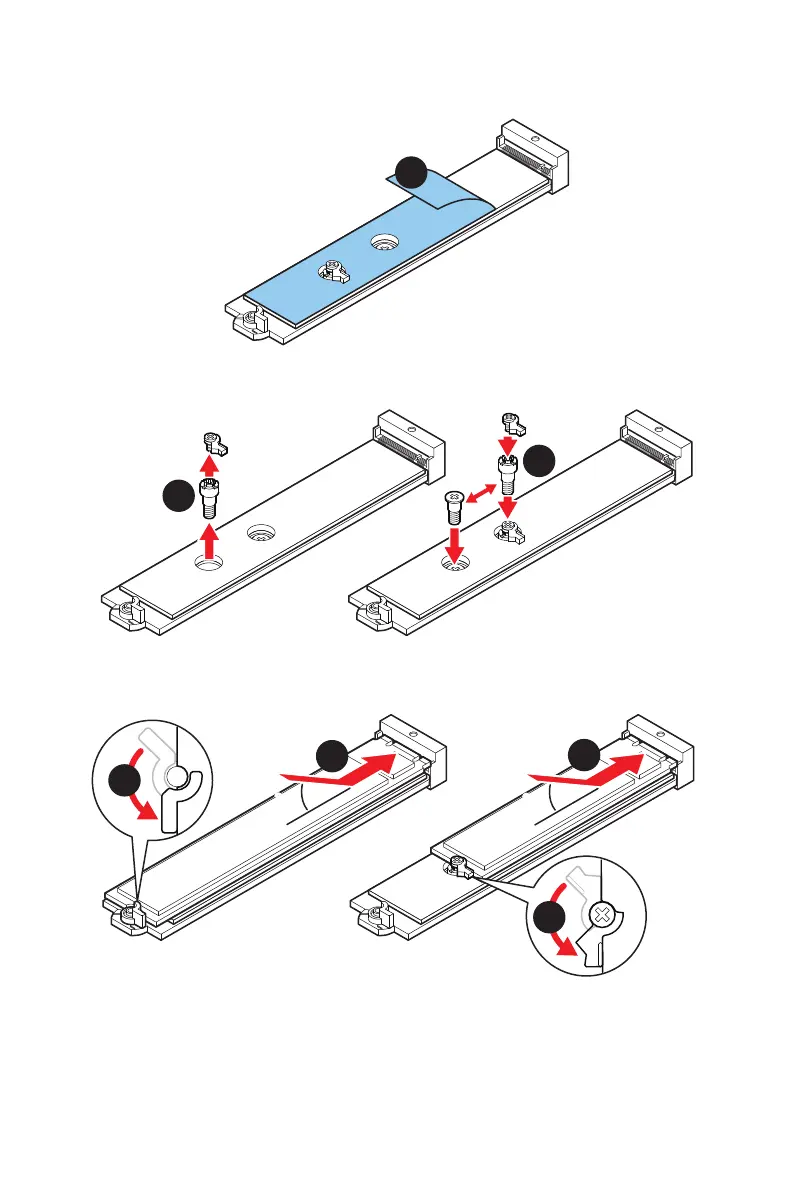

3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
3
4. Remove or exchange the screws according to your SSD length. Skip this step, if
you install 2280 SSD.
4
4
22110 SSD
2260 SSD
5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
5
5
6
6
22110 SSD
2280 SSD
2260 SSD
