MSI MEG Z690 ACE - Page 40

40
Overview of Components

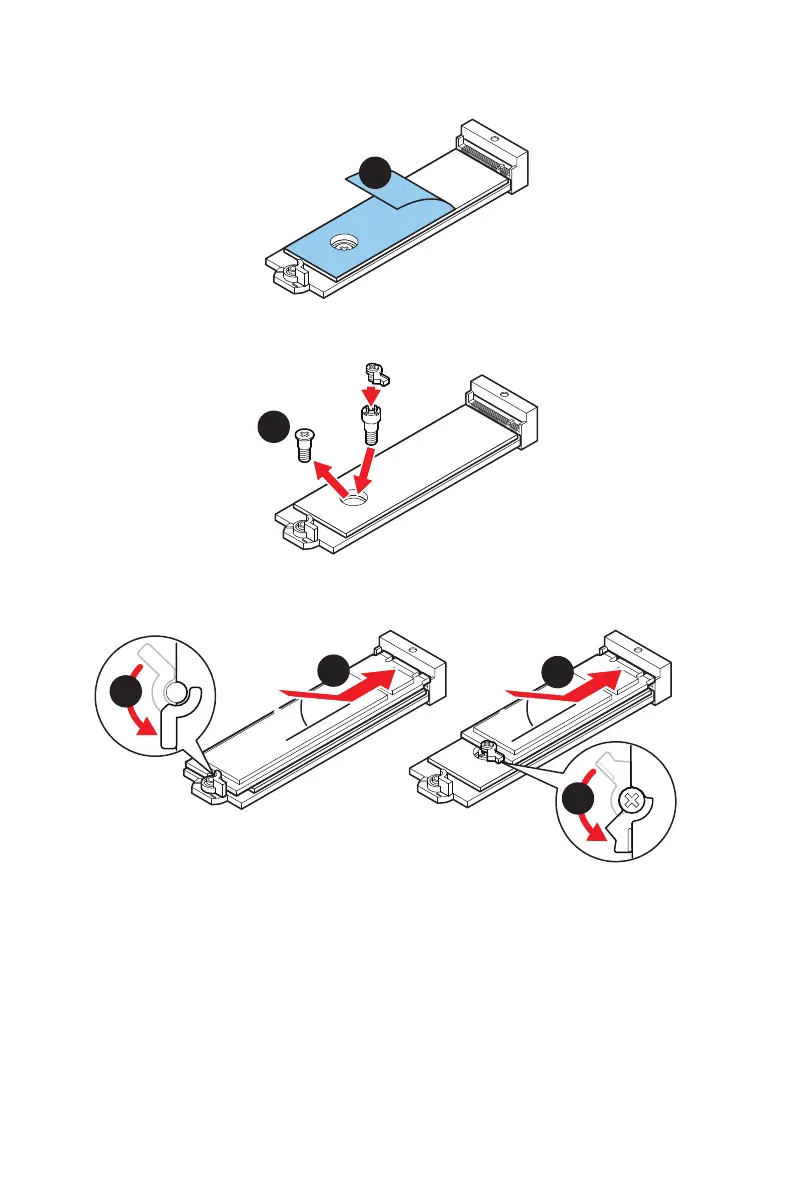

3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
3
4. If you install 2260 SSD, remove the screw from the M.2 plate and then install
supplied EZ M.2 Clip kit on the M.2 plate. Skip this step if you install 2280 SSD.
4
2260 SSD
5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
2280 SSD
2260 SSD
6
5
5
6
