Overview of Components

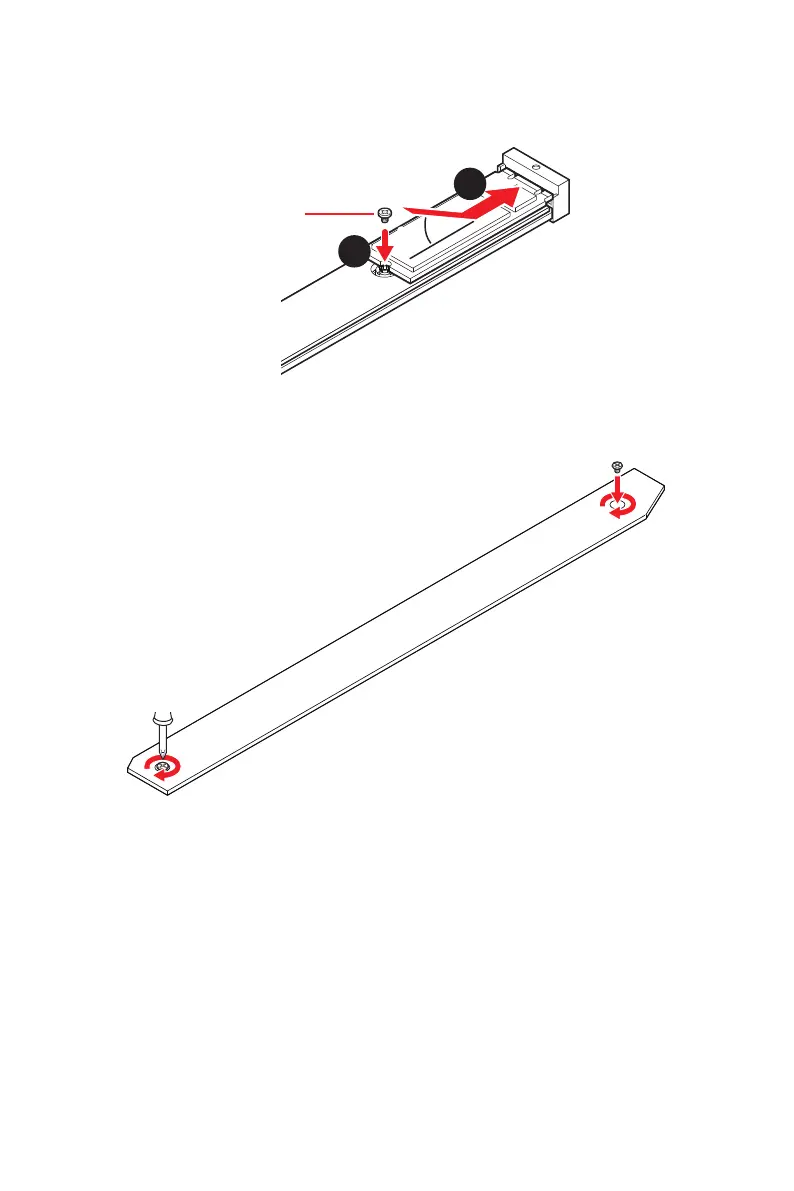

6. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
7. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
30º30º
7
8.5H screw
6
8. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
