22
Overview of Components
3.

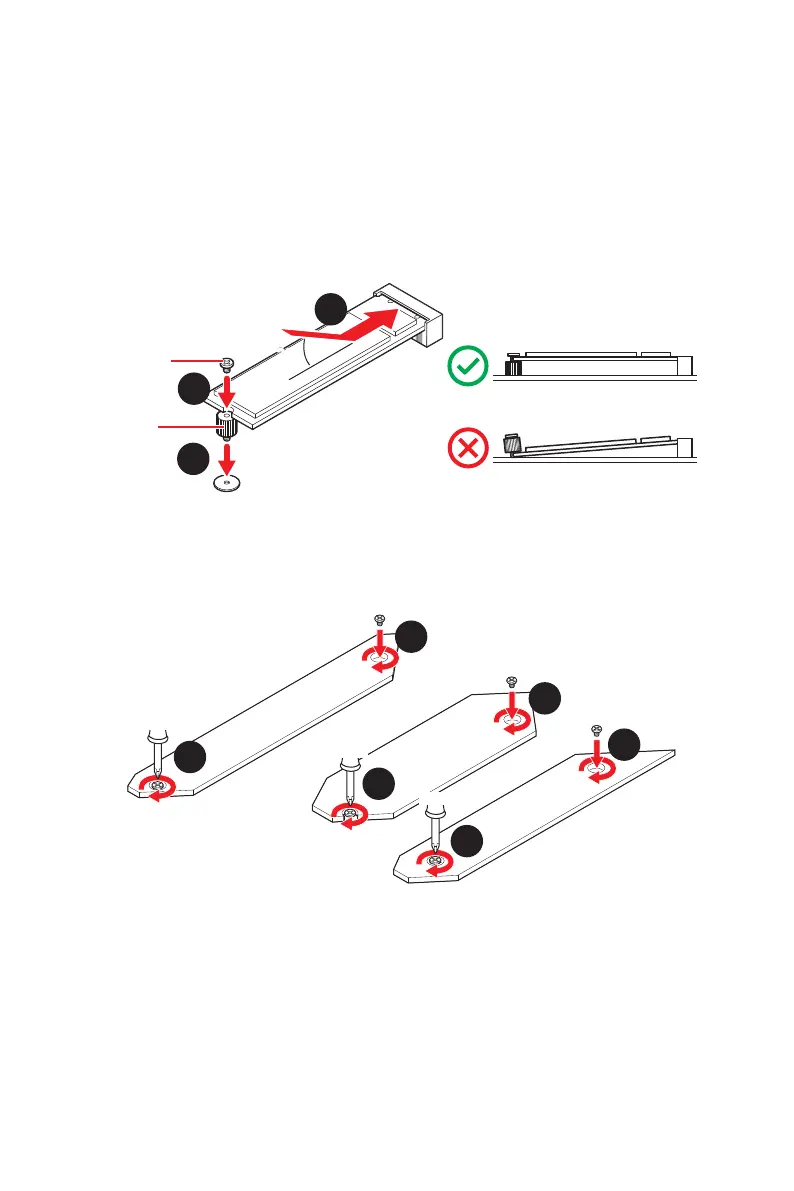

Secure the supplied M.2 standoff according to your M.2 SSD length if need.
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
⚠
Important
Skip step 3 and step 5, if you install 22110 M.2 SSD into M2_1 slot or install 2280 M.2
SSD into M2_2 & M2_3 slots.
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
30º30º
5
4
3
8.5H screw
Standoff
6
6
6
6
6
6
To Next Page
