MSI MPG X570S EDGE MAX WIFI

21
Overview of Components
M2_1~3: M.2 Slots (Key M)

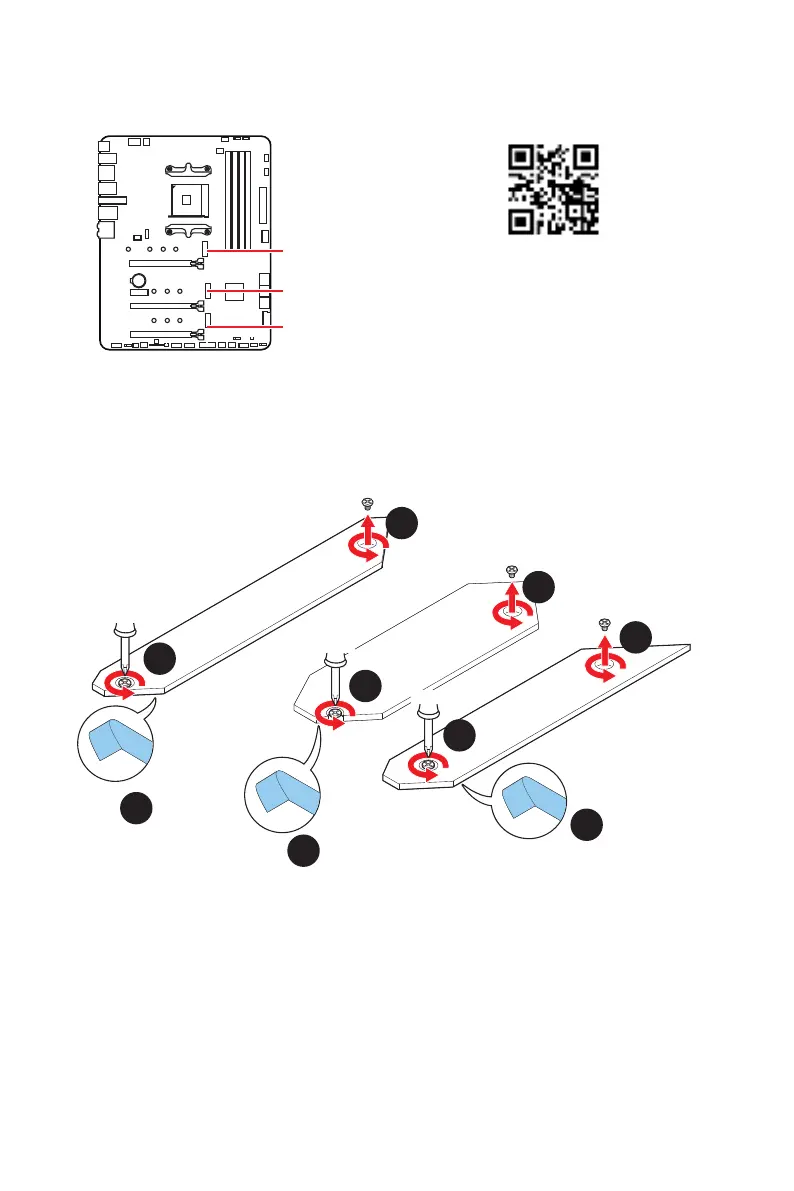

Installing M.2 module
1.
Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
M2_1 (CPU)
M2_2 (Chipset)
M2_3 (Chipset)
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
2
2
2
1
1
1
1
1
1
M2_1
M2_2
M2_3
