Overview of Components

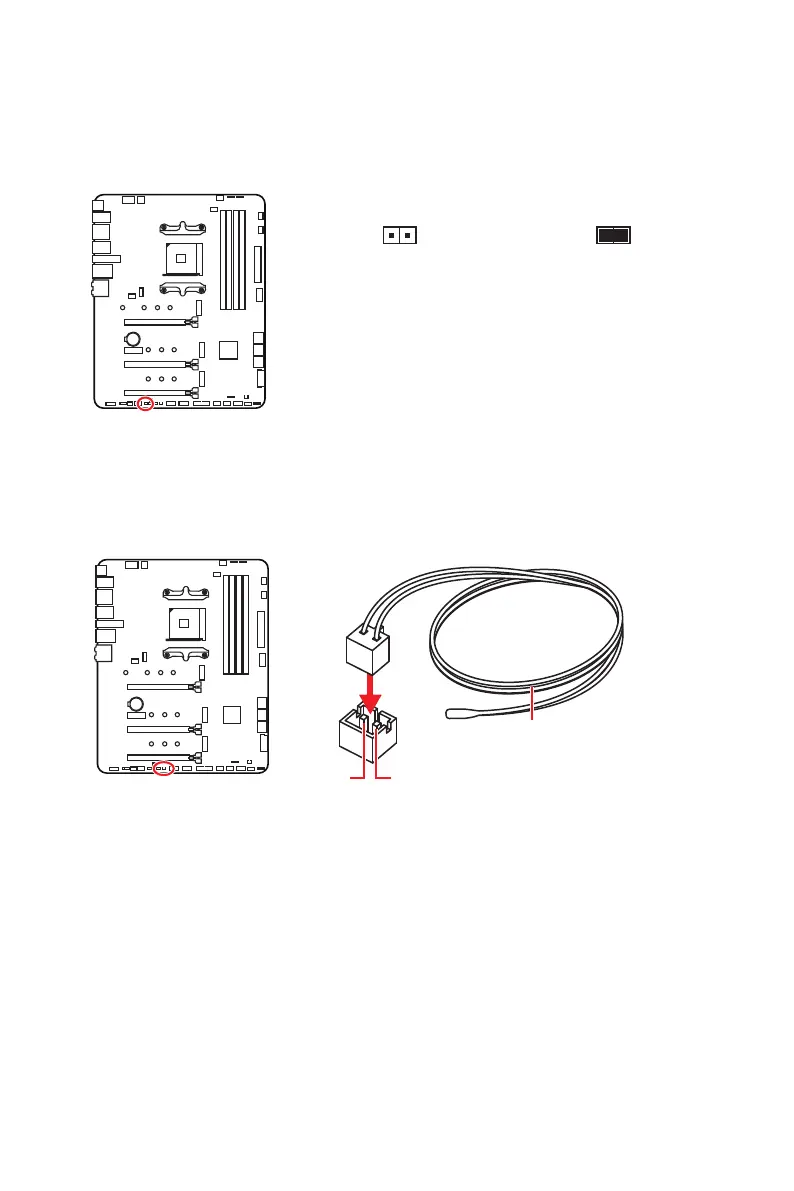

T_SEN1: Thermal Sensor Connector
This connector allows you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GNDSense
Normal Boot
(default)
Enabled
Boot with lower PCIe
(from CPU) mode for
Safe Boot.
JOC_FS1: Safe Boot Jumper
This jumper is used for Safe Boot. Once enabled, the system will boot with lower PCIe
(from CPU) mode.
