CHAPTER 2 HARDWARE INSTALLATION
2-20

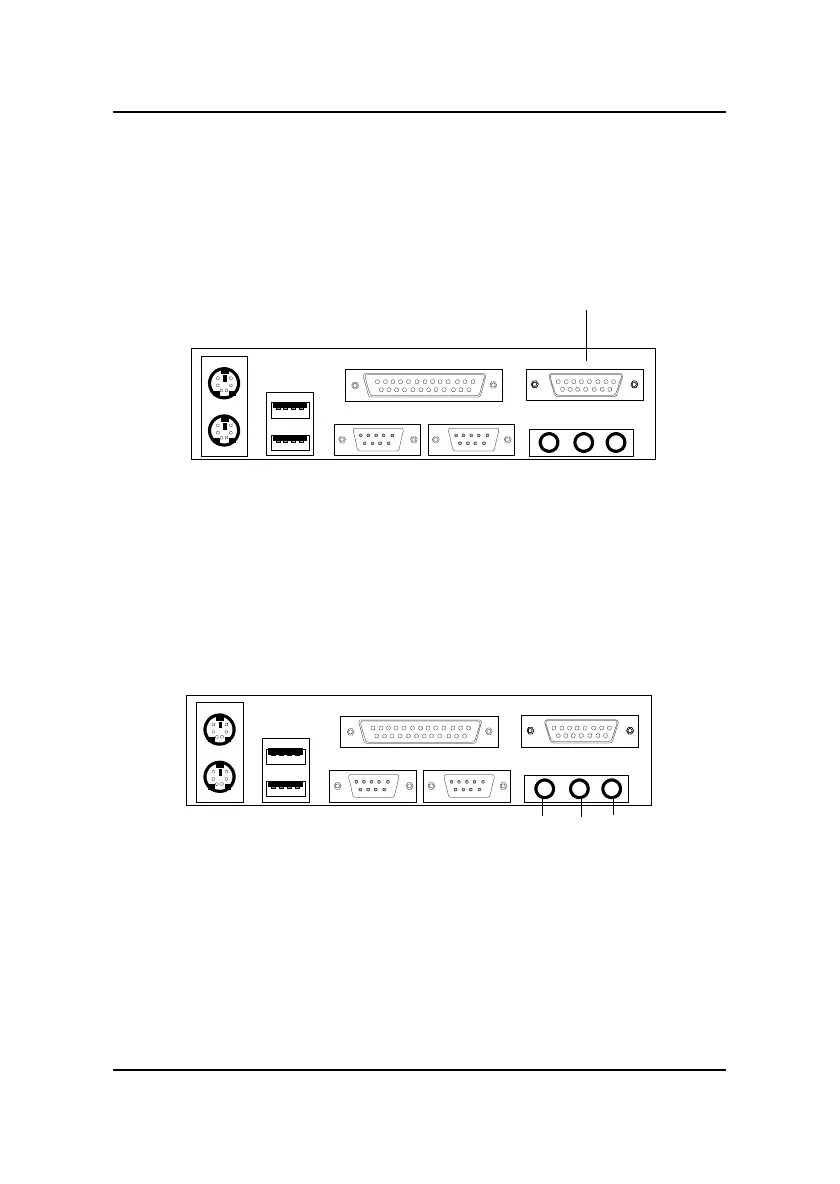

2.14 Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape layer, or other audio devices. Mic is a connector for
the microphones.
Line Out
Line In
Mic
1/8” Stereo Audio Connectors
2.13 Joystick/Midi Connectors
You can connect joystick or game pad to this connector.
Joystick/MIDI
NOTE: Line Out supports SPDIF converter. In case, you use the SPDIF
converter, change the output mode to digital on the audio setting.
