1.2 Mainboard Layout

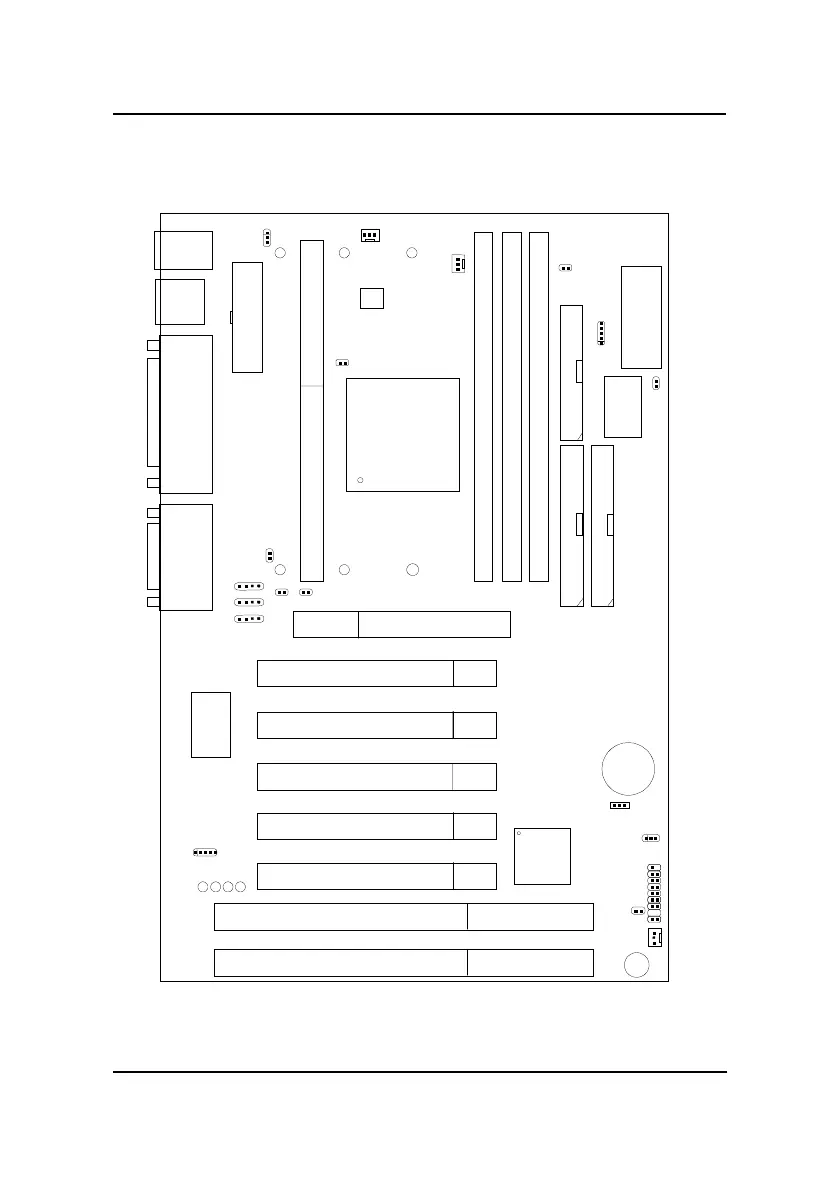

MS-6199 ATX VIA Mainboard
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ISA SLOT 2
ATX
Power Supply
SLOT 1
DIMM 2
Top: Mouse
Bottom:
Keyboard
Top: Port 1
USB
DIMM 1
IDE2
Bottom:
Port 2
IDE1
FDD
JMDM1
JFP
JGS1
JBAT1
BIOS
JPHONE: MDM_IN
JAUX: AUX_IN
CPUFAN
JSOR1
JRMS1
PSFAN
IR
BATT
+
Top: LPT
Bottom:
COM 1/
COM 2
Top: Midi/
Game Port
Bottom:
Line-Out
Line-In
Mic
JCD: CD_IN
SW2
JKBV
System
Hardware
Monitor
(optional)
AGP SLOT
JCASE
DIMM 3
PCI SLOT 4
PCI SLOT 5
ISA SLOT 1
JWOL1
SYSFAN
WINBOND W83977EF-AW
JT3
Creative
ES1373
(Optional)
SW3
Diagnostic LED
234
5
VT82C693A
VT82C596B
