CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2
HARDHARD
HARDHARD
HARD
WW
WW
W
ARE INSTARE INST
ARE INSTARE INST
ARE INST
ALLAALLA
ALLAALLA
ALLA
TIONTION
TIONTION
TION
2-22
WW
WW
W
akak
akak
ak
ee
ee
e

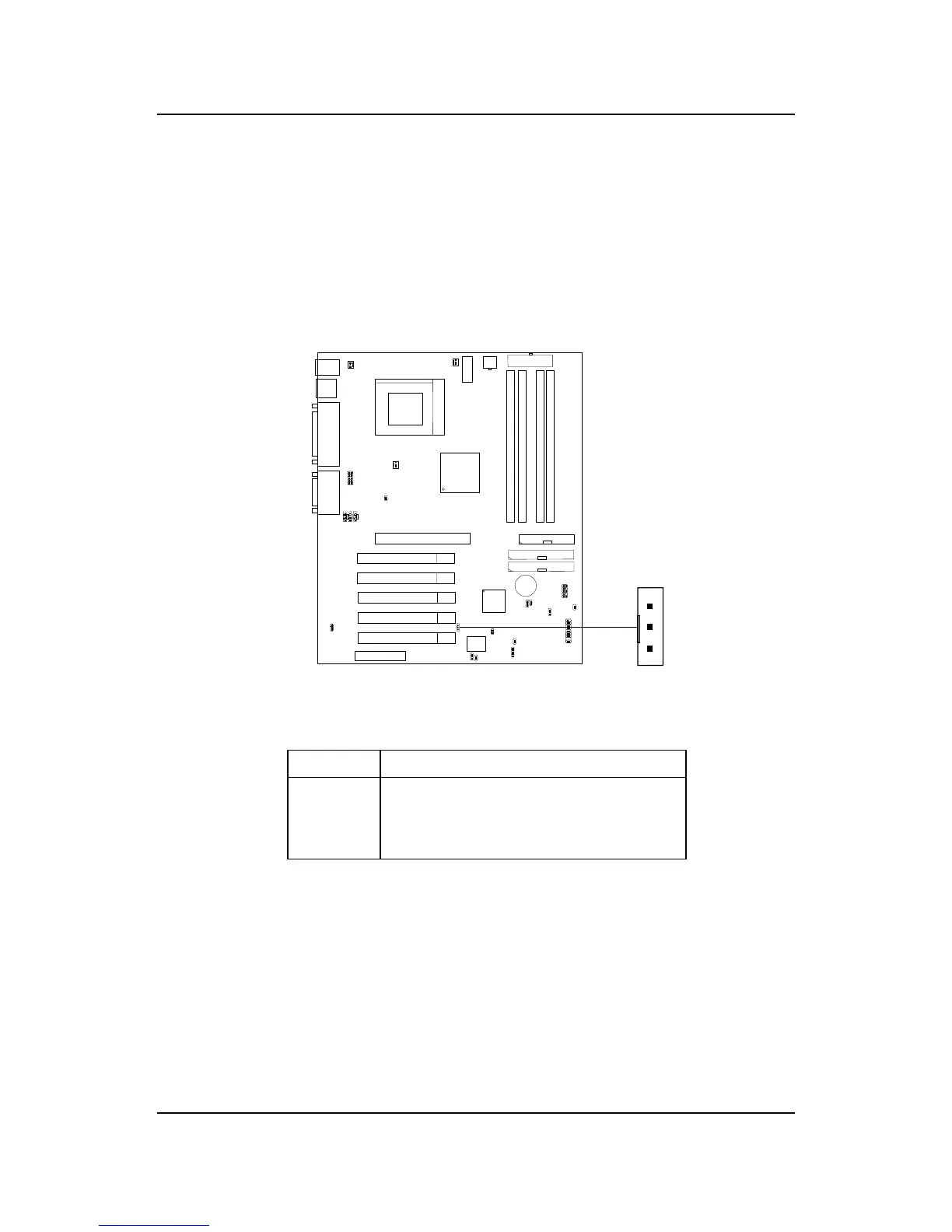

-Up on LAN Connector: JWOL1-Up on LAN Connector: JWOL1
-Up on LAN Connector: JWOL1-Up on LAN Connector: JWOL1
-Up on LAN Connector: JWOL1
The JWOL1 connector is for used with LAN add-on cards that supports
Wake Up on LAN function. To use this function, set the Wake-Up on
LAN to enable at the BIOS Power Management Setup.
PIN SIGNAL
1 5VSB
2GND
3 MP_WAKEUP
Note: LAN wake-up signal is active high.
Note: To be able to use this function, you need a power supply that
provide enough power for this feature. (Power supply with 750mA
5V Stand-by)
JWOL1
3
1
