2-23
Modem WModem W
Modem WModem W
Modem W
akak
akak
ak

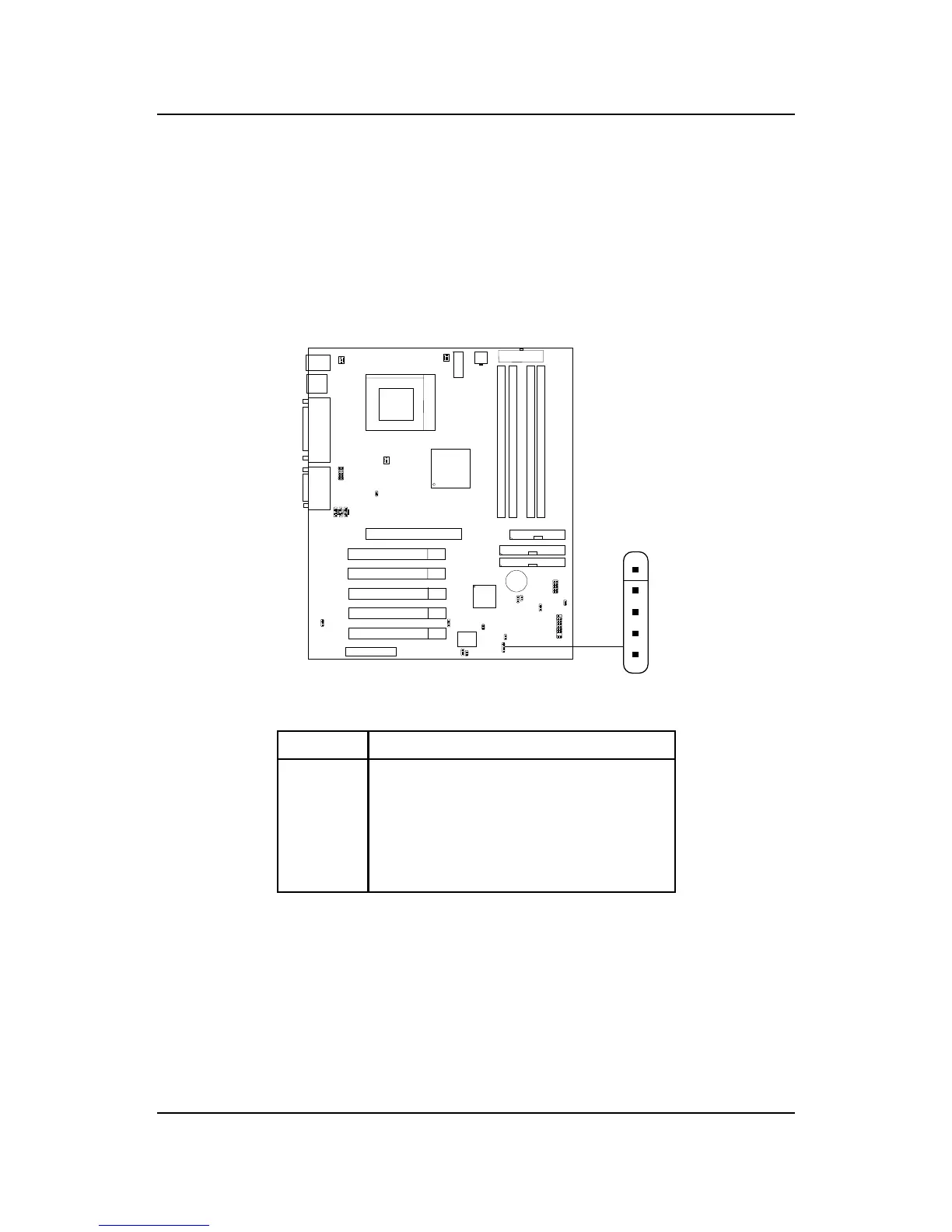

e Up Connector: JMDM1e Up Connector: JMDM1
e Up Connector: JMDM1e Up Connector: JMDM1
e Up Connector: JMDM1
The JMDM1 connector is for used with Modem add-on card that supports
the Modem Wake Up function.
Note: Modem wake-up signal is active low.
PIN SIGNAL
1NC
2GND
3 MDM_WAKEUP
4NC
5 5VSB
Note: To be able to use this function, you need a power supply that
provide enough power for this feature. (Power supply with
750mA 5V Stand-by)
JMDM1
1
5
