Chapter 2
2-16

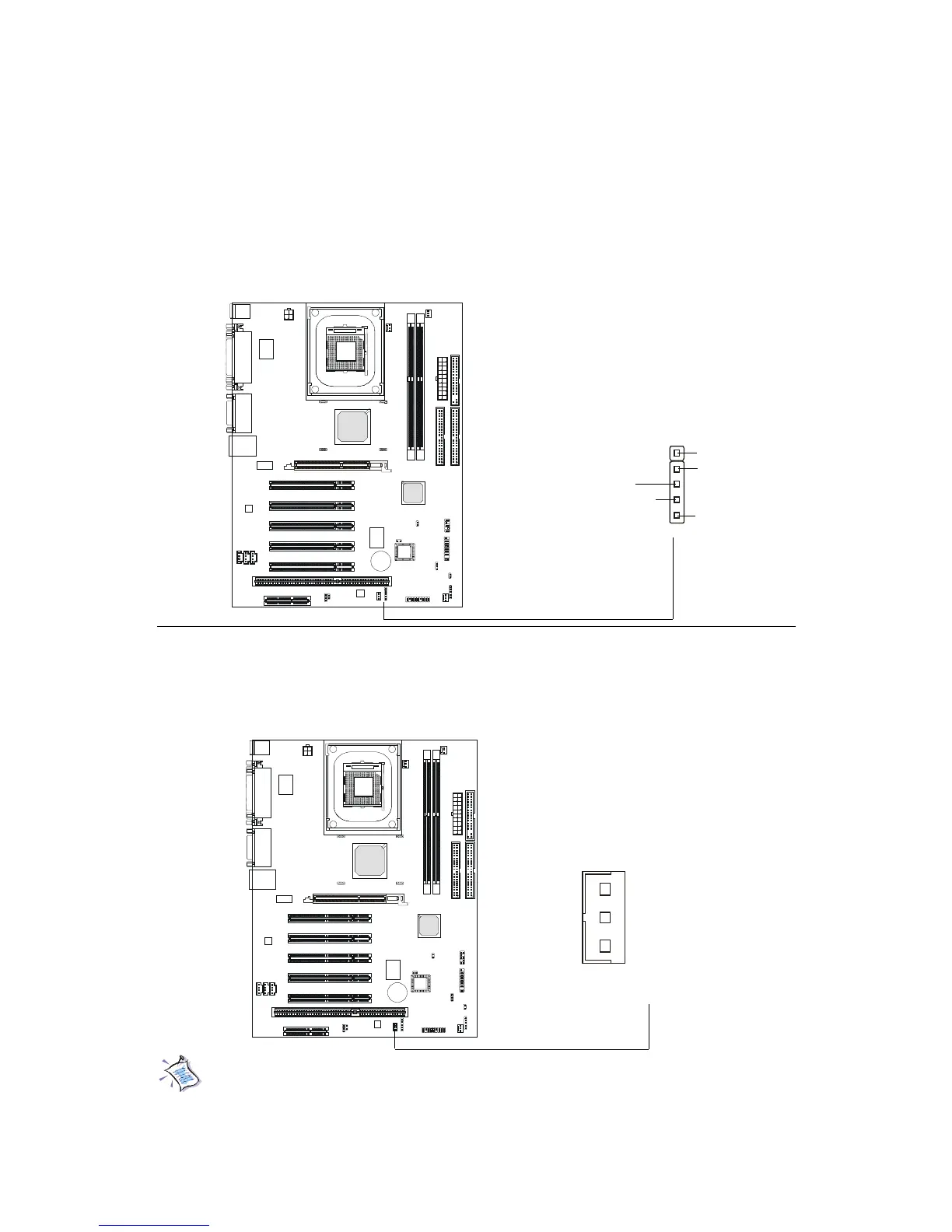

Wake On Ring Connector: JMDM1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re-
ceived through the modem card.
Wake On LAN Connector: JWOL1
This connector allows you to connect to a LAN card with Wake On LAN
function. You can wake up the computer via remote control through a local area
network.
JMDM1
JWOL1
Note: To be able to use this function, you need a power supply that provides
enough power for this feature. (750 mA 5V Stand-by)
NC
MDM_WAKEUP
5VSB
1
GND
NC
5VSB
GND
MP_WAKEUP
1
To Next Page
